2W/3W Fixed Input, Dual Output DC to DC Converter
Specification:

- Input: 5, 9, 12, 15, 24; Output: +/-5, +/-9, +/-12, +/-15, +/-24

- Output power consumption (avaliable): 3W

- HIGH POWER DENSITY

- 8PIN SIP PACKAGE

- DUAL OUTPUT

- INDUSTRIAL STANDARD PIN-OUT

- NO HEAT SINK REQUIRED

- 1KVAC ISOLATION

- FIXED INPUT

- UNREGULATED OUTPUT

- PCB MOUNTING.

Table:

We can make other types of converters, For more information, please enquire us.

A/B/D/E/F/G/H series	Remarks	Output Power Consumption(W)	Input Voltage (VDC)	Output Voltage (VDC)	Output Accuracy	SIP/DIP	Isolation	RIPPLE
A××××S/D-2W	Fixed input, positive& negative dual output	0.1,0.2,0.5, 0.75,1,2	3.3,5,9,12,15,24	±5,±9,±12,±15	≤±5%	7P S / 14P D	1KVDC	≤150mVp-p
A××××S-3W	Fixed input, positive& negative dual output	3	5,9,12,15,24	±5,±9,±12,±15,±24	≤±5%	8P S	1KVDC	≤200mVp-p
B××××S-3W	Fixed input,single output	3	5,9,12,15,24	5,9,12,15,24	≤±5%	8P S	1KVDC	≤200mVp-p
B××××S/D-2W	Fixed input,single output	0.1,0.2,0.5, 0.75,1	3.3,5,9,12,15,24	3.3,5,9,12,15	≤±±5%	4P S / 8P D	1KVDC	≤150mVp-p

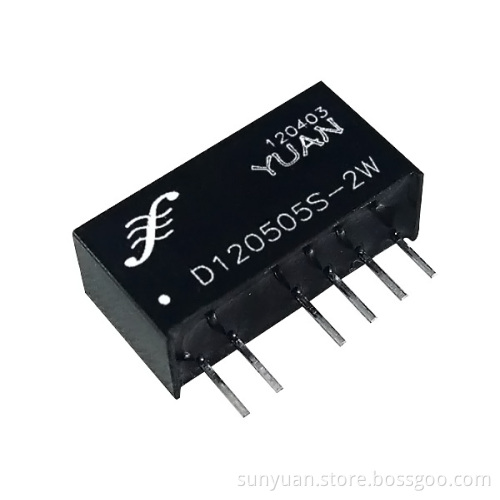

D××××××S/D-2W	Fixed input,double output	0.2,0.5,1,2	5,9,12,15,24	5,9,12,15,24	≤±5%	7P S / 14P D	1KVDC	≤150mVp-p
E××××S/D-2W	Fixed input, positive& negative dual output	0.2,0.5,0.75, 1,2	3.3,5,9,12,15,24	±5,±9,±12,±15,±24	≤±5%	7P S / 14P D	3KVDC	≤150mVp-p
F××××S/D-2W	Fixed input,single output	0.1,0.2,0.5, 0.75,1,2	5,9,12,15,24	3.3,5,9,12,15,24	≤±5%	7P S / 14P D	3KVDC	≤150mVp-p
G××××S-2W	Fixed input,positive& negative dual output	0.2,0.5,0.75, 1,2	5,9,12,15	±5,±9,±12,±15	≤±5%	7P S	6KVDC	≤150mVp-p
H××××S-2W	Fixed input,single output	0.2,0.5,0.75, 1,2	5,9,12,15	5,9,12,15	≤±5%	7P S	6KVDC	≤150mVp-p
