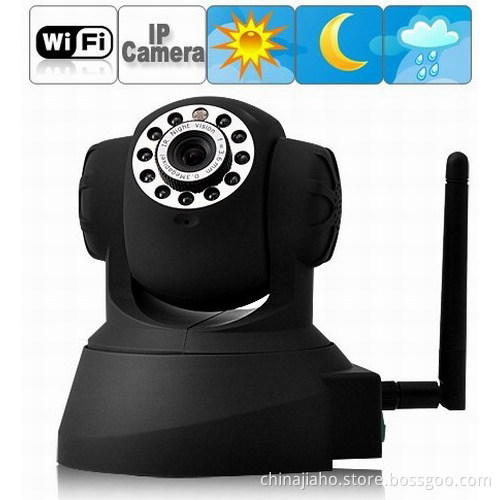

Wireless and Wired IP Security Camera + IR Filter + Motion Detection (JH_IPC_002)

Product Specifications:
Wireless and Wired IP Security Camera + IR Filter + Motion Detection
Wired and wireless, connect with WiFi or with LAN cable
Provide worldwide access. Connect up to 4 IP cameras
Motion detection with email alarm
With Indeed infrared IR cut-off filters, thus allowing you to easily identify people and recognize objects, even in environments with very poor lighting conditions.
The Wi-Fi feature comes with WEP encrypted security options, this helps in making sure your IP security camera system is protected from hackers.
Sensor: CMOS 1/4 inch, 300000 pixels
Image compression format: M-JPEG standard
Image resolution:
- VGA: 640 X 480
- QVGA: 320 X 240
Image transfer velocity: 30fps (QVGA), 25fps (VGA)
The view Angle:
- Horizontal rotating angle: 0 ~ 270 degrees
- Vertical rotating angle: 0 ~ 120 degrees
Alarm mode: Motion detection/alarm and I/O alarm
Video display: Microsoft media player
Image display: Single/quad
Audio input/output: Bidirection audio
Minimum illumination: 0 LUX
Video format: AVI
Network interface: RJ-45/10-100 Base T 802.11b/g
Network protocol: TCP/IP, DHCP, SMTP, TP, DDNS, UPNP, PPPoE
Alarm control
- Output: 1 channel (5V DC, 0.1A)
- Input: 1 channel (closed trigger)
Motion detection support: Yes
Monitoring mode: IE, Firefox and Google browsers
Software upgrade: Automatic
Security: User management system, password protection, password setting, administer, monitor, scrutiny
Working Temperature: 0 ~ 50 Degrees Celsius
Power adapter:
- AC: 110 ~ 220V, 50 ~ 60Hz
- DC: 5V/2A
Power consumption: 3W
System requirement: CPU from 2.0GHz
Memory: From 256M
Network card: From 10M
IR distance: 5-12 meters
Support UPNP and automatic port mapping, Mobile phone browsing, LAN and WAN viewing, Real-time video capture and recording, PT speed adjustable
Max set up 8 PTZ preset position: Yes
One channel external alarms input/output: Yes
DynDNS. Org & Oray. Net free DNS service: Yes
Main Screen Software Controls Displays:
Viewing and recording for visitor:
- Single screen
- Multi screen
- Add time stamp on record
- OSD color
- Audio buffer
- Play, stop, snapshot
- Record, Audio, video, MIC record
Administrator:
- User settings: Set up to 8 users
- Set time & date: Sync with your PC and select from a list of Ntp servers
- Multi-device options: This feature allows you to setup 4 IP cameras to monitor simultaneously
- Basic network settings: Use the basic network settings to allocate IP addresses to each individual IP camera
- Wireless LAN settings: Comes with WEP encryption security options
- ADSL settings
- UPnP settings
- DDNS service settings
- Mail service settings: Set up mail alert
- FTP service settings
- Alarm service settings - Motion detection, alarm input, send mail on alarm, upload image on alarm
Operator:
- 360 degrees panning control
- Viewing options: Reversal, mirror
- Resolution: 320 X 240, 640 X 480
- Mode: 50Hz/60Hz, outdoor
- Brightness & contrast adjustments
Connectors/ports
- Audio
- Ethernet
- Antenna
- I/O alarm
- DC 5V
Languages: English, French, Spanish, Portuguese, Italian, German, Dutch, Russian, Simplified Chinese, Traditional Chinese
Supported operating systems: Windows 2000/2003/XP/Vista/Windows 7
Dimensions(L X W X D): 100 X 100 X 120 mm
Accessories:
2 X Wall Screws
1 X Ethernet Cable
1 X Mounting Plate
1 X Power Adapter (100 - 240V)
1 X CD (included User Manual, IP Camera Application)
