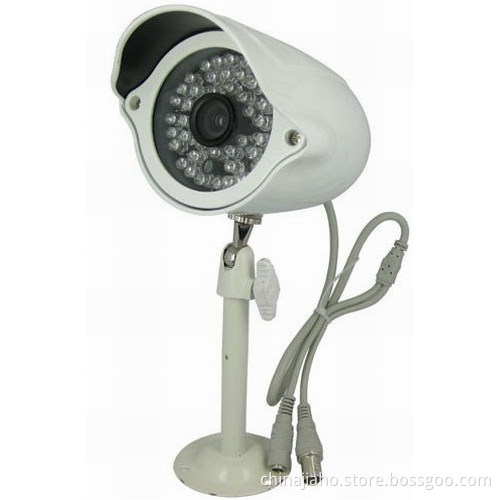

1/3 Sony CCD 40m Nighttime View Distance 480tvl Surveillance CCTV Camera (JH_CCTV_084)

Product Specifications:
1/3 Sony CCD 40m Nighttime View distance 480TVL Surveillance CCTV Camera
Adopt 1/3 inch color Sony CCD image sensor, with 480 TV lines high horizontal resolution.
With streamlined design and ivory baking finish. Concise and beautiful appearance
Adopting baking finish alloy, Easy to heat dissipation. With waterproof cover, support work in various occasions
Material: Aluminum alloy
Image Sensor: 1/3 inch color Sony CCD image sensor
The length of the lens: 6mm
Horizontal Resolution: 480 TV Lines
Viewing Distance:
- Nighttime (IR): 40 meters
Effective Pixels:
- PAL: 752 (H) x 582 (V)
- NTSC: 512(H) x 492 (V)
IR LED:
- Quantity: 48 pcs
- Diameters: Φ 5 mm
- Wavelength: 850nm
Video Output: 1Vp ~ p. 75 Ω
Shutter Speed: 1/50 ~ 1/100, 000 second
White Balance: Auto White Balance
Backlight Compensation: ON
S/N Ratio: > 48db
Sync Speed: Internal
Minimum Illumination: 0.000 LUX at night(IR LED ON)
IR lamps wavelength: 850nm
Scanning mode: 2: 1
Waterproof Level: IP66
CDS Sensor: YES
Audio: No
Operating Temperature: -20 ~ 50 Degrees Celsius
Operation Humidity: RH95%
Connection Type: BNC
Power Requirement: DC 12V, 1000 mA
Dimensions:
- Diameter: 90 mm
- Length: 150mm
Accessories:
1 x BNC
1 x Bracket
1 x Screws
1 x Power Adapter
