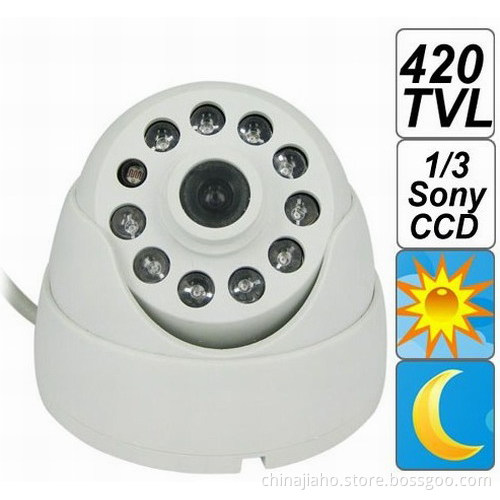

4mm Lens 1/3 Sony CCD Surveillance Camera + IR LED (JH_CCTV_089)

Product Specifications:
4mm Lens 1/3 Sony CCD Camera + IR LED
Adopt low power consumption board, with stable Performance
With Φ 8 mm 10 pieces IR LED, the viewing range can be 15 meters long at nighttime.
Material: Plastic
Image Sensor: 1/3 Sony CCD
Horizontal Resolution: 420 TV Lines
The length of the len: 4 mm
Effective Pixels:
- PAL: 752 (H) x 582 (V)
- NTSC: 512(H) x 492 (V)
IR LED:
- 10 pcs
- Wavelength: 850nm
- Diameters: Φ 8 mm
Viewing Distance:
- Nighttime(IR): 15 meters
Scanning mode: 2: 1
Minimum Illumination: 0.000 LUX x F1.2(IR LED ON)
Video Output: 1Vp ~ p. 75 Ω
Shutter Speed: 1/50 ~ 1/100, 000 second
White Balance: Auto White Balance
Backlight Compensation: ON
S/N Ratio: > 48db (AGC OFF)
Sync Speed: Internal
CDS Sensor: YES
Audio: No
Waterproof: No
Operating Temperature: -10 ~ 50 Degrees Celsius
Operation Humidity: RH95%
Connection Type: BNC
Power Requirement: DC 12V, 1000mA
Dimensions:
- Diameter: 90 mm
- Length: 90 mm
Accessories:
1 x BNC
1 x Screws
1 x Power Adapter
