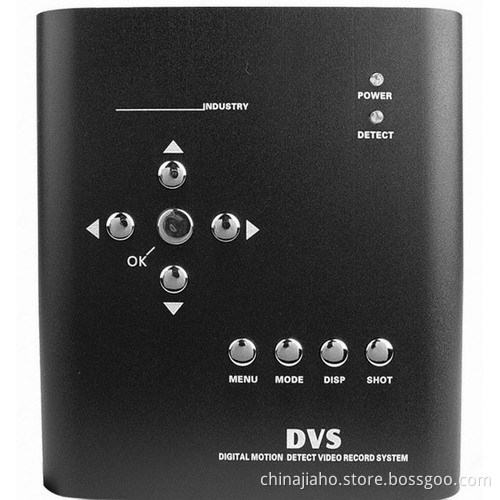

Digital Motion Detect Video Recorder (JH_DVR_002)

Specifications:
* Immediately getting into the work state of "detect motion object" after power on
* Without moving objects or the objects stop moving, there will be not taking photo or stop taking photo
* With internal flash card which can store about 230 pieces of picture /50 video clips

* Automatically take photos/record instantly when detect the moving objects
* Supporting maximally the SD card with 2G which can expand widely the storage of images
* Video memory tenet is First in, First out, record forever
* With ports of outside triggers shooting and motion detect signal trigger output

* Can combine with all kinds of alarm system or visual doorphone system which form newly shooting alarm system
* Can connect two cameras simultaneously, with the function of Picture in Pictures, but only the main picture can shoot
* Supporting all kinds of CCTV cameras (CCD, CMOS)

* The parameters which has been sett up and the stored pictures / video will not lose when power off
* The shooting date as file name, the format of picture is JPEG, and the format of video is AVI
* Supporting outputting video signal of NTSC / PAL
* The detecting scope, sensitivity and the interval time which all can reset
* Has the simple operation screen, no need to install software
* Support playback the images on TV/monitor, or on computer by reader
* Can look for / check and delete images / video throughout the shooting date

* Technique Parameter
* Supply Voltage: DC5V
* Work Current: 350mA
* Work Temp: -10 deg C~ +50 deg C
* Video Input Impedance: 75ohm
* Video Input Level: 1Vp-p
* Video Polarity: Cathode
* Video Output Impedance: 75ohm
* Video Output Level: 1Vp-p
* Video Polarity: Cathode

* Internal Storage: With the flash card of 16MB
* Max Memory: Support 2GB SD Card
* File Format: Picture with JPEG, Video with AVI
* Record Time: Every recording time 10S
* Unit Sizes: 120x110x25mm(LxWxT)
* Color option: Red, Black, Blue

Accessories
* User Instruction
* One DC5V Power Adapter
* One shooting control wire
* One detect signal output control wire
