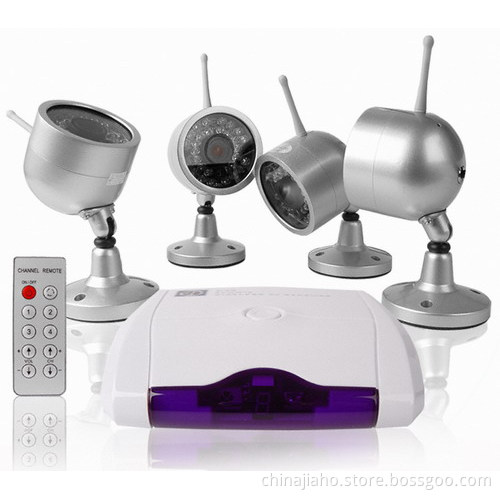

Wireless Security Kit - 2.4GHz 4channel Remote Wireless Receiver + 4 Night Vision Wireless Camera (JH_WCS_001)

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union, Credit Car

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Money Gram, Western Union, Credit Car

Product Description

Receiver Specifications:
Receiving Frequency: ISM 2400~2483Mhz
Frequency Stabilization: +/-100Khz
Manual or Remote Controlled
Four Channels Available
Intermediate Frequency: 480Mhz
Video Output: 1Vp-p@75, S/N>38dB
Audio Output: 1Vp-P@600
Power Adapter: DC 12V/500mA
Demodulation Mode: FM
Antenna: 50ohm SMA
Receiving Sensitivity: <-85dBm
Dimension: 120x99x30mm
Channel Scan and Channel Skip for multiple Cameras
Camera Specifications:
Image Device: 1/3 Inch OmniVision CMOS
TV system: PAL 628(H)x568(V) NTSC 510(H)x496(V)
Horizontal Definition: 380TV Line
Angular Field of View: 45deg(f=6mm)
Minimum Illumination: 0Lux
Built in 30 IR LED for 12m night vision range
Synchronization System: Internal
Scanning Freq(H): 15.625KHz PAL / 15.734KHz NTSC
White Balance: Auto
S/N Ratio: >48dB
Gamma Correction: >0.45
Operation Temperature: -10~50 deg C
Scanning Freq(V): 50Hz PAL / 60Hz NTSC
Backlight Compensation: Auto
Electronic Shutter: 1/50(1/60)~1/100, 000sec
Transmission Frequency: ISM 2, 400~2483MHz
Locked Frequencies
Power Adapter: DC12V/500mA
Dimension: 44x100 camera circumference x L
Waterproof
Built in Microphone
Recommended Range for Objects: 1-12M. Max effective range 12M.
Transmission Range: 100m without interference
