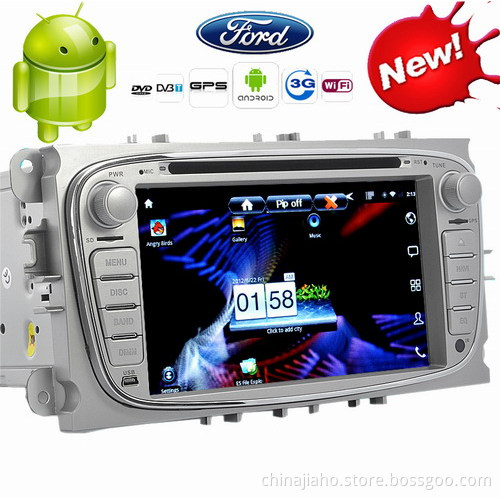

8 Inch TFT LCD Touch Screen Android Car Stereo for Ford Mondeo - 2 DIN GPS Car DVD with Can Bus, 3G, WiFi, TV and Bluetooth (JH_CDP_105)

Product Specifications:
Display information:
- Screen: 8 Inch TFT LCD
- Resolution: 800 x 480 RGB
- Picture in picture: YES
- Choose your own background pic: YES
- Tilt angle: 0-90 degrees (button activated motorized tilt)
- Video systems: PAL, NTSC, SECAM, AUTO
Major System:
- Motherboard: Panasonic MN101EF31G 8-bit MPU
- Display Chip: MST 776, 500MHZ
- Android Core CPU: TCC8900 ARM11, 720MHZ
- Internal memory: 256MB RAM, 2G Nand Flash
- External memory: supports TF/USB drive up to 32GB
- Operating system: Android 4.0
Internet Support:
- 3G: supports 3G WCDMA SIM cards (3G Dongle included)
- WIFI: 802.11 b/g (Dongle included)
GPS information:
- Receiver module: SiRF
- Frequency: 1.575.42 GHZ
- C/A Code: 1.023 MHZ
- Signal channels: 62
- Tracking sensitivity: -161dBm
- Position sensitivity: 3.0m CEP
- Speed rate: 0.1m/s
- Data update rate: 1HZ
- Recapture time: Average 0.1s
- Hot startup time: Average 1s
- Warm startup time: Average 32s
- Cold startup time: Average 35s
- Maximum position altitude: 18000M
- Maximum speed rate: 515m/s
- Built-in antenna type: External power source porcelain antenna
- Built-in antenna voltage: 3.3V±5%
- Built-in antenna current: 15mA
- Built-in antenna gain: 27dB
- Interface: Touch screen
- GUI interface: YES - 3D type
- Maps: via SD card v- Voice: YES
- GPS menu languages: English, Chinese (Simplified), Chinese (Traditional), German, French, Italian, Spanish, Portuguese, Russian, Polish, Turkish, Arabic, Korean, Japanese, Danish, Dutch, Swedish, (The actual voice and display language depend on GPS software which being used.)
Disc format:
- Region free (also known as region zero or no region)
- CD, VCD, SVCD, DVD, MP3, WMA
Audio format:
- Max audio output: 60W x 4
- Signal-to-noise ratio (SNR): >85dB
- Preset EQ: POP/ROCK/CLASSIC/FLAT
AM/FM radio tuner:
- AM frequency range: 522~1710KHz (Worldwide)
- FM tuning range: 87.5~108.0MHz (Worldwide)
- RDS system: YES

Bluetooth Support:
- Pair with mobile phone - then use touchscreen interface
- Dial, Answer, Stop Call
- Volume Control
- Touchscreen Keypad
Media Format:
- Video formats supported: MP4, DivX
- Audio formats supported: MP3 / WMA
- Image formats supported: JPG
Connection Ports:
- IPOD input
- USB input
- Micro SD input
- GPS antenna input
- Radio antenna input
- RCA audio OUT x2 (front L and R)
- RCA audio OUT x2 (rear L and R)
- Aux-L IN
- Aux-R IN
- Subwoofer
- Video IN
- Video OUT x2
- Camera IN
Digital TV Support (optional):
- Digital TV receiving standard: MPEG-2/MPEG-4
- ISDB-T
- ATSC
- Automatic and manual search
- Display: 16:9
Language Support: English, Chinese (simplified), Chinese (Traditional), Russian, Italian, Turkish, Japanese, German, French, Portuguese, Thai
Certification: CE, FCC, RoHS
Other Features:
This product support Digital TV function, this function is optional item
Connect your iPod to listen to your entire music collection on your car stereo system
The USB port is a great way to hook up your portable media player with your car entertainment center
GPS Map Software Notes:
This model are compatible with most brands of GPS software such as iGO, Route 66... Our Chinajiaho only provide a testing version of GPS Map software. If you want to upgrade your map software, you had better buy a latest local version and perform under the professional guidance.

Accessories:
Remote control
4G Free TF Card
WIFI dongle
3G Dongle
GPS antenna
Digital TV antenna (If you select Digita TV option)
Apple connector
USB Cable
CAN Bus
AV cables
Stylus
4G Free TF Card
Power cables
English User manua
FM adapter cable
