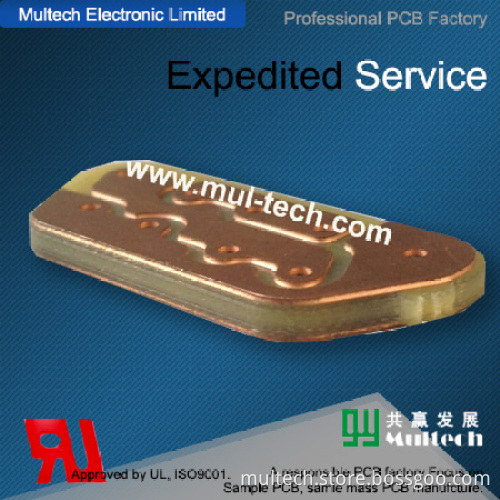

Heavy Copper PCB Board, High Quality PCB Board (F/N 2398)
- Payment Type:
- T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangxi, China |
|---|---|
| Payment Type: | T/T, Paypal, Western Union |
Product Description
Product Description
Production Description:
Heavy copper PCB board, we can offer single side PCB board, double side PCB board and multilayer circuit board with high quality, LOW COST! !
2 layer with 10 oz / 350um copper
Material: FR4 (Tg 135'C)
Finished thickness: 1.6mm
Finished Copper: 10 /10 oz
Min Hole Size: 2.0 mm
Without solder mask.
Surface: OSP
Panel Layout: 124.8*123.4mm(3X5 up)
Multech Electronic Limited is a Chinese PCB manufacturer which founded in 2003, in 2010 we invest new factory in a mainland town Xinfeng, Jiangxi province in order to make cost lower. We have 120 staff and our production capacity is 10,000 sq meter per month. We are ISO9001 certificated and UL approved. Now we have customer from China, Europe, USA, Japan, etc. Welcome to cooperate we'll provide you a good service.
More info please visit our website: www.mul-tech.com
Heavy copper PCB board, we can offer single side PCB board, double side PCB board and multilayer circuit board with high quality, LOW COST! !
2 layer with 10 oz / 350um copper
Material: FR4 (Tg 135'C)
Finished thickness: 1.6mm
Finished Copper: 10 /10 oz
Min Hole Size: 2.0 mm
Without solder mask.
Surface: OSP
Panel Layout: 124.8*123.4mm(3X5 up)
Multech Electronic Limited
Multech Electronic Limited is a Chinese PCB manufacturer which founded in 2003, in 2010 we invest new factory in a mainland town Xinfeng, Jiangxi province in order to make cost lower. We have 120 staff and our production capacity is 10,000 sq meter per month. We are ISO9001 certificated and UL approved. Now we have customer from China, Europe, USA, Japan, etc. Welcome to cooperate we'll provide you a good service.
Our advantage:
A. Very competitive price
B. Fast lead time from 2days
C. Perfect service and good relation ship with customer
D. Good quality.
Business Philosophy:
Mission: To become a leading PCB manufacture in China. Customer' satisfaction is more important than profit. Keep good quality and on time delivery is essential to satisfy clients.
To do right the first time and do right every time.
Every one is important in the team, employees are the heart and soul of our company, we try to make every one satisfied so that they can make our clients satisfied.
Quality Audit Staff
Quality Audit Staff
Quality Control:
Our company is ISO 9001 certificated and UL approved, all of PCB are manufacturing under a stable management.
Quality Policy:
Quality Policy:
Quality is commercial integrity 1% defect may brings 100% disaster for customer. Our management goad is to make client 100% satisfied. Offering perfect products is essential to satisfy clients.
We ensure:
We use good brand base material and solder mask
In order to increase the reliability and performance, we never use local and
unknown brand supplier.
Enough copper thickness inside hole
Since some of our customer has complained the problem of les copper, we have improved and pay more attention the copper thickness inside hole.
It's important because we know if not have enough copper inside hole it will increase the risk of electrical continuity problems (blow hoes, out gassing, inner layer separation, barrel cracking)
We platted to 25 um on normal board.
No short or open circuit repair
Poor repair can actually lead to open circuits being supplied. Even a "good" repair has risk of failure under oad conditions (vibration etc.) leading to potential field failures.
More info please visit our website: www.mul-tech.com
| Item | Capability |
| PCB Layers | 1-24 Layers |
| Base Material | FR4,CEM1,CEM3,ALU,FR2,FR1,Polymide,Rogers,Arlon,Teflon |
| Copper Thickness | 0.5-6 OZ |
| Impedance Control | Yes |
| Peeable Mask | Yes |
| Min.Line Width | 0.08mm |
| Min.Line Spacing | 0.08mm |
| Min.Annual Ring PTH | 0.15mm |
| PTH | 0.20mm±0.05mm |
| Non-PTH | 0.15mm±0.05mm |
| Hole Aspect Ratio | 10 |
| Min.Board Thickness | Singel&Double side 0.2mm |
| Multilayer(4,6,8,10 layer)0.4mm,0.55mm,0.8mm,0,8mm | |
| Max Board Sixe | 600*900mm,400*1200mm |
| Solder Mask Pitch | 0.1mm |
| Outline Tolerance | ±0.15mm |
| V-CUT Tolerance | ±0.10mm |
| thickness Tolerance | MIL-P-13949 Class 2 |
| Gold Finger | 5u"-50u" |
| Surface Finish | HASL,LF HAL,Immersion Gold,Immersion silver,Flash Gold,Flux Coat&OSP |
| Special Capability | Burial/blind vias,Impedance Control,via plug,BGA,Gold Finger |
| Test | Fly probe test,E-test,Inspection AOI test |
| Certificate | RoHS,ISO9001:2000,ISO14001:2004,SGS,UL |
