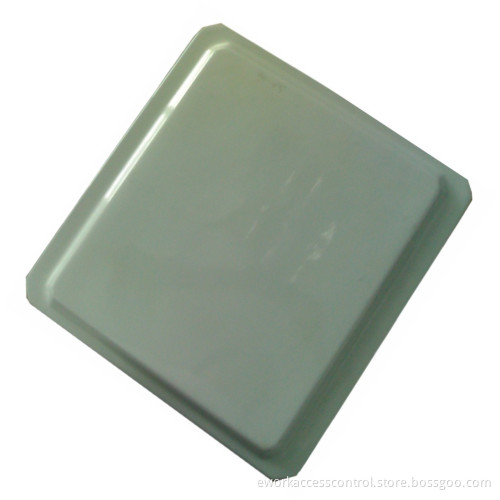

902MHz to 928MHz Access Control UHF Reader (ERFID-M1)

902mhz to 928mhz Access Control UHF Reader (ERFID-M1)

Model Number: ERFID-M1

Specifications Explanation

Operating Frequency 902MHz to 928MHz
RF protocol ISO18000-6B, EPC Class 1, EPC Class 1 GEN 2
Operating Method FHSS or fixed frequency(Set by software)
Max RF power 30 dBm
Power smoothness less than 0.5 dB
RF power range 20 to 30 dBm (Adjustable by software)
Identify tag mode Fixed time automatically reads the tag; External trigger control reads the tag or the software control reads the tag, Identify tag mode can be set
Identify tag time less than 8ms(Identify single tag)
Reading/Writing time Reads every 8 bytes to be smaller than 5ms, writes every 4 bytes to be smaller than 25ms
Reading distance more than 6m
Communication interface TYPE A: RS-232, RS- 485, Wiegand26/34
TYPE B: RS-232, RS-485, Wiegand, USB
TYPE E: RS-232, Wiegand, Ethernet
Power Supply DC 12V
Power Consumption less than 5W
Size 440mm*440mm*60mm
Work Temperature: -10 C to 70 C
