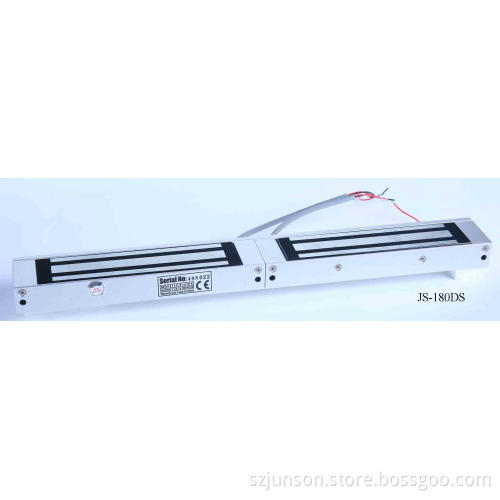

300lbs Double Door Magnetic Lock (JS-180D)

Double Door Magnetic door Lock(300Lbs) (JS-180D/JS-180DS)


Lock Size: 340Lx40Wx21H(mm)
Armature plate: 130Lx33Wx12H(mm)
Holding Force: 180kg X 2 (300Lbs X 2)
Voltage: 12/24VDC
Current Draw: 12V/380mA 24V/190mA
Available Bracket: JS-18U, JS-18L

Signal Output: Dry Contact, Max Rating of Contact Current 3A (Just for JS-180DS)
LED indicates the door is unlock, Green indicates the door is lock (Just for JS-180DS)
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20
Operating Temp: 10~+55(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2.4kg
Standard Packing: 10PCS

Collinear Load Test 180kg X2, 300pounds X2
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
LED Indicates the Door Status (Just for JS-180DS)
Door Status sensor(NO/NC/COM) (Just for JS-180DS)
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing
