Electric Lock (JS-1503SLD)

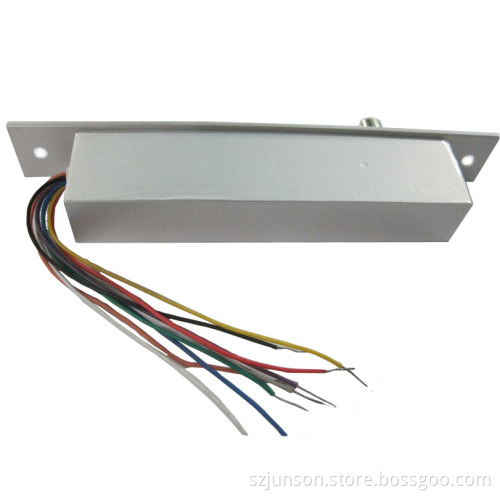

Electric bolt with Narrow Panel JS-1503SLD


Parameters

Fail Safe: Unlock when power off
Lock size: 200Lx28Wx39H(mm)

Magnet plate size: 200Lx28Wx3H(mm)
Lock pin: 12mmDIA, stainless steel 15mm throw
Voltage: DC12V(DC24V)
Start Current: 12VDC/1.3A; 24VDC/0.5A

Standby Current: 12VDC/0.08A; 24VDC/0.05A
Solid lock pin: Polishing housing, 1000Kg Holding Force
Suitable For: Narrow frame of wood door, metal door, glass door
Signal Output: 1...Door Status sensor, NC/COM

2. Lock Status sensor, NC/COM

These 2 senores can be used together or alone as option.

Auto relock jumper: Adjustable (0~6S)

Surface Temp: Low Temperature
Induction Distance: 8mm
Operating temp: -10~+25degree(14-131F)
Operating Humidity: 0~90%(non-condensing)
Face place material: High Aluminum, Carrulous Line Finished
Weight: 0.7kg
Standard Packing: 10PCS.

Carton size: 53Lx30Wx14H(cm)

Feature
Low Temperature, safe & Durable
Low Power, Environmental Protection
Special Designed Solenoid for Strength and Long Life with 500000 Operations
MOV Provides Reverse Current Protection
Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt
CE Certificate by European Union, MA China Public Security office
Photoelectricity Control, Low Temperature,

A: The Low Electric Current Changed in the Twinkling of eyes;

B: Location on the Door is not Straight, The Door withstands the bolt, The low temperature changing will be achieved also

C: The Photoelectricity Controls Technology, Prevent the Trouble of the Machinery.

We produce many type of locks, like: Electric lock, Electric drop bolt, Electric deadbolt, Magnetic lock, Electric strike, Electronic lock, Door lock and other locks
