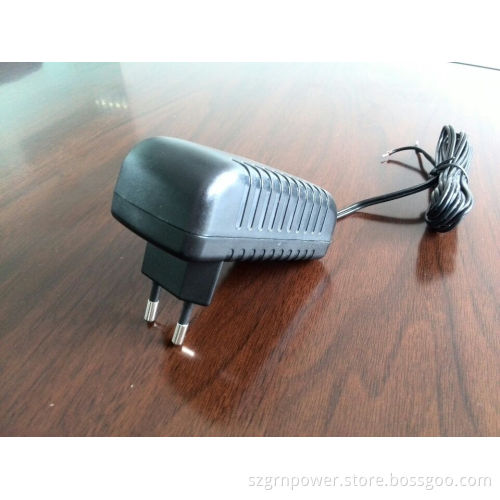

P2012-LX is a main member of digital-chargers from Green Digital
Power-tech Co., Ltd. It represents today's new technology for 3.7V(1s)~14.8V(4s) Li-ion, Polymer or Li-Fe battery pack charging. P2012-LX Programmed 2 auto stages (Im-Um) charging process, It is designed for 2~8Ah Li-ion/Polymer/LiFePO4 battery pack. When the battery is connected Properly, "Im" will give bulk constant current charging, until voltage reach CV Point. Then, "Um" stage is followed, the output voltage is limited on 4.2V/per Cell(3.6V for LiFePO4), until the charge current declined to 0.1A. At this stage, the battery is charged completely and the charger will cut off output automatic.

Further, P2012-LX can display the charging process, indicate the battery Capacity from 50% to 100% timely. This is helpful for user.

For more safety, P2012-LX will inter protection mode when the battery polarity Reversed our the output connectors shorted.

Specification for G10-XXL
Input Voltage	100-240VAC, 50-60Hz
Input Current	0.2A
Back current drain	< 1.3mA
Charge voltage limit	P2012-[L1, F1]	P2012-[L2, F2]	P2012 [L3, F3]	P2012 [L4, F4]
	[L1]4.2V± 1% [F1] 3.6V± 1%	[L2]8.4V± % [F2] 7.2V± 1%	[L3]12.6V± % [F3] 10.8V± 1%	[L4]16.8V± 1% [F4] 14.4V± 1%
Bulk charge current	1.5A ± 8%	1.1A ± 8%	0.8A ± 8%	0.7A± 8%
Operate Temperature	-20° C~50° C
Cooling	Natural convection. Do not cover the charger.
Charger principle	Auto 2 stages: Im-Um
Battery type	3.7V, 7.4V, 11.1V, 14.8V Li-ion/Polyme For " -F" suffix: 3.2V, 6.4V, 9.6V, 12.8V LiFePo4
Battery capacity	2-8Ah
Size	81X43X30mm
Enclosure	IP54 (Dust protected, Water splashing resistance)
Weight	100g
