Product Description
Product Description

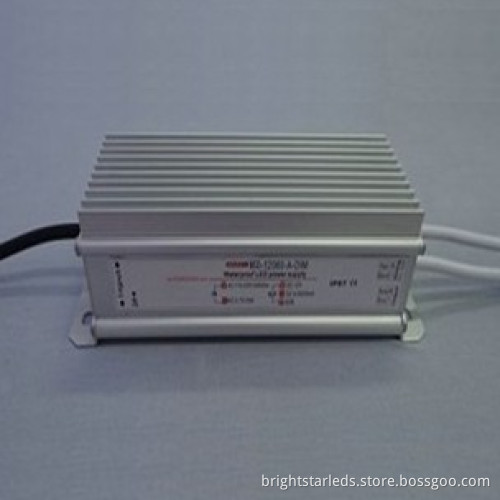

0-10V Constant Current Dimmable LED Driver 36V 2800mA
Parameter standard
Input Voltage: AC90-130V/AC 170-250V
Output Voltage: 25-36V
Output Current: 0-2800mA
Output Power: 17.5W
Dimming Type: 0/1-10V
Waterproof Level: IP67
EFF: >83%
Housing Material: Aluminum Cover
Input Cable Model: VDE H03VV-F 3G0.75mm2 Black Wire
Output Cable Model: VDE H03VV-F 2*0.75mm2 White Wire
Packing Size 324*298*188mm
Qty: 20/PCS
G· W: 1300g/PCS
Note: Max Current of Every types Constant Current dimmable LED dirver is Customizable.
For Example:
1), DIM-EX-50V-350mA, Output Current set from 0-300/310/ to 350mA.
2), DIM-EX-36V-2800mA, Output Current set from 0-2300/2500/. 2800mA
The LED Driver as above can be compatibility with 0-10V Dimmer (AC) & 1-10V Dimmer(Electric Resistance), it also can work with various 0-10 Intelligent Dimming System.
