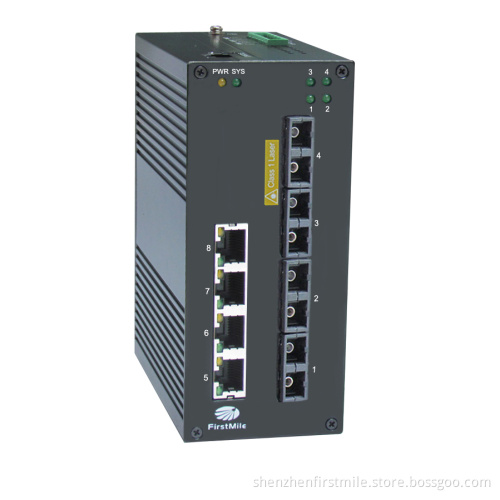

Managed Industrial Switch with 8 Ports IDS 508 / IDS 508-4f

8 ports Managed Industrial din rail Ethernet Switch

Features
Reliable hardware design is suitable for industrial applications
Proprietary Protocol "Fi Ring" (recovery time <20ms) and RSTP/STP for network redundancy
SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network
Easy network management through web browser, CLI, Telnet /serial console, Windows utility, SNMP
Industrial-grade design with -40 to +75° C operating temperature and redundant power inputs

Specification
IDS 508: 6x10/100BaseTX ports+2x100BaseFX ports
IDS 508-4F: 4x10/100BaseTX ports+ 4x100BaseFX
Command Line Interface (CLI) for quickly configuration major managed functions
FMC Ring Protocol "Fi Ring" (recovery time < 20 ms), RSTP and STP for network redundancy
IGMP snooping for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
Support port mirroring
Support traffic control of multicast and broadcast
QoS and ToS/DiffServ to increase determinism
Port Trunking for optimum bandwidth utilization
Support Modbus/TCP protocols for device management and monitoring
SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for ef<001F>ficient network monitoring and proactive capability
Bandwidth management prevents unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Automatic alarm through e-mail, relay output
Works with FirstMile FiVision NMS industrial network management software for traffic monitoring and easy network troubleshooting

Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for Flow Control

Protocols
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client,
TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,
SSH, SNMP Inform, LLDP, SNTP Server/Client

MIB
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control
IEEE 802.3x flow control, back pressure flow control

Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 256
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 1 Mbit

Interface
Fiber Ports: 100Base-FX (SC/ST/FC connector)
RJ45 Ports: 10/100BaseTX auto negotiation
Console Port: RS-232(RJ45 connector)
Alarm Contact: 2 relay outputs with current carrying capacity of 0.5A@48V

Power Requirements
Input Voltage: 48 VDC (36 to 72VDC), redundant dual inputs
Input Current: 1.8A@48VDC (support up to 6 ports at 30W)
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 6-contact terminal blocks

Mechanical Properties
Housing: Metal, IP40 protection
Dimensions: 60.2 x 115.5 x 138.5 mm
Weight: 750g
Installation: DIN-Rail mounting, wall mounting

Environmental Limits
Operating Temperature:
Standard Models: 0 to +60° C (32 ~ 140° F )
Wide Temp. Models: -40 to +75° C (-40 to 167° F)
Storage Temperature: -40 to +85° C (-40 to 185° F )
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5years



Typical application(tunnel monitoring system using 508 and 509)
