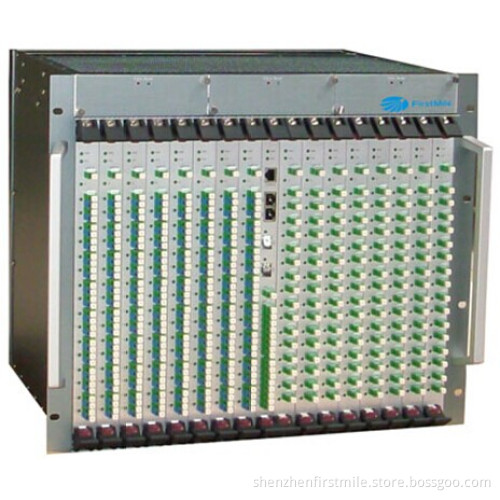

FTTH Multi-Service Platform Onaccess 9000

The OnAccess 9000 Multi-Service Platform is a 17-slot 9HU 19" subrack unit. It is a Point-to-Point based FTTx solution supporting ultra-high-speed broadband access and Triple Play services, i. E. Cable TV or IPTV, broadband Internet access and VoIP. Its compact design, low power consumption and extended temperature range make it suitable for deployment in central offices as well as in street cabinets. With high port density and low power consumption, OnAccess 9000 is ideal for Fiber-to-the-Home networks with many subscribers.


Features
FTTH Point-to-Point solution supporting ultra-high-speed broadband access and transmission over Ethernet at n x 1 Gbps and n x 10 Gbps.
480 Gbps switching matrix.
Multiple protection and redundancy functions for highly available data transmission.
Flexible management and provisioning through Web browser, CLI, Telnet and SNMP.
Centralized management through OnAccess View EMS.
Combined broadband Internet access with cable TV or IPTV and VoIP on single fiber or dual fiber.
Via the 100/1000Base-BX10 connections, you can connect optical CPEs (Customer Premises Equipment) and provide residential and business customers with powerful connections to the Internet.
Analogue and digital CATV can be carried on a separate fiber or be transmitted over the same fiber as the data signal, using a separate wavelength. The RF Overlay is based on Wavelength Division Multiplexing (WDM).
9U 19" rack-mount 17-blade chassis hosting one(1) 900XI aggregation card and 16 x 916IO series line cards, and the 916IO-03/04 line cards can transmit cable TV signal simultaneously.
Built-in SFP modules for maximum port density of 256 user ports per subrack
