Poe ONU Poe CPE Equipment

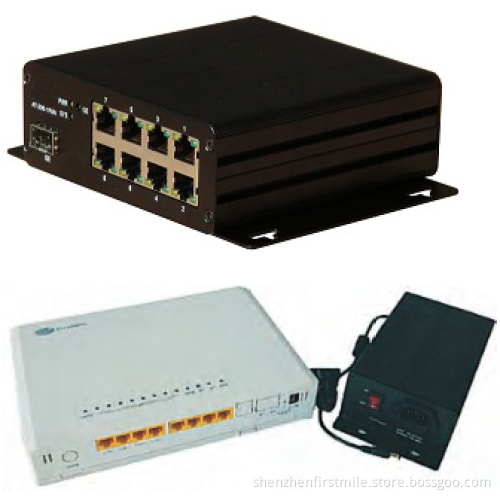

The OnAccess G48xP CPE can provide up to eight(8) PSE+Fast Ethernet downlinks access interfaces ( up to 15watts per port) with 1x1000BaseX SFP uplink. OnAccess G48xP CPE can provide power supply for PD devices such as wireless Access Point, IP phone and surveillance camera, and etc. In addition, they also provide the demarcation point of the network and offer all the functions of Layer 2 residential gateway, including RF-CATV overlay.

Feature:

1. Up to eight(8) IEEE 802.3af-compliant PoE and Ethernet combo ports
2. WAN port support 1000Mbps
3. RF CATV overlay by high-Isolation WDM(optional)
4. Fiber Termination Unit available
5. Low power consumption solution
6. Flexible management and provisioning through Web browser, CLI, Telnet, and SNMP
7. Support for centralized management through OnAccess View EMS


Standard

IEEE 802.3IEEE 802.1p (CoS)
IEEE 802.3uIEEE 802.1Q (VLANs)
IEEE 802.3-2005 Clause 58IEEE 802.11b/g/n
IEEE 802.3x (Flow Control)
Administration Protocols
RFC 826 (ARP)RFC 1157 (SNMP)
CWMP(TR-069)RFC 1902 (SNMPv2)
RFC 2131/2132 (DHCP)RFC 1901 (Community based SNMPv2)
RFC1035/2782/2915 (DNS)RFC 2271 SNMPv3 Architecture
RFC 792 (ICMP)RFC 2573 (SNMPv3 Applications)
RFC 2236 (IGMP v2)RFC 2576 (Coexistence between SNMP V1, V2, V3)
RFC 791 (IPv4)RFC 1156 (TCP/IP MIB)
RFC 2616 (HTTP)RFC3164 (Syslog)
RFC 1350 (TFTP client)RFC 896 (Congestion control in IP/TCP network)
RFC 768 (UDP)RFC 1122 (Requirements for Internet Hosts)
RFC 793 (TCP)RFC 3046 (DHCP/BootP Relay)
RFC 2474 (Diffserv)RFC 1213 (MIB for Network Management of TCP/IP
Based internets (MIB II))
RFC 3350/3551/3711 (RTP)RFC2765 (Stateless IP/ICMP Translation Algorithm)
RFC 3605 (RTCP)
RFC 854 (Telnet)
VOIP Standards
ITU-T Q. 24 (DTMF)RFC 2976 (SIP info)
RFC 2833 (DTMF signaling)ITU-T G. 711/G. 723/ G. 726/G. 729, GSM
RFC 2327 (SDP)ITU-T G. 168 (IEC)
RFC 3261/3263/3264/3265/3311/3420/3489/3515/3581
/3842/3891/3892/4028 (SIP 2.0)


Physical Parameter
Dimensions(HxWxD): 213mm X 268mmX56mm
Weight: 0.3kg
Power Supply: 12VDC
Power dissipation: <6W
Operating Temp. 0º C~+60º C Storage Temp. -10º C~+75º C
Relative humidity 5%~95% (non-condensing)
