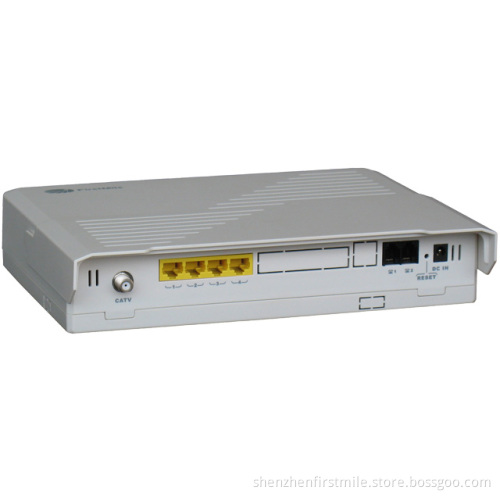

Switched FTTH Home Gateway ONU 100/1000Mbps Dual-Rate Onaccess 45X Series

OnAccess 45x Series 100/1000Mbps Dual-Rate Switched FTTH Gateway

The OnAccess 45x series advanced FTTH optical gateway with managed Layer 2 Ethernet services are developed for FTTH network based active Ethernet. They provide the demarcation point of the network and offer all the functions of Layer 2 residential gateway, including voice, CATV and wireless connectivity. They offer 100/1000Mbps dual-rate WAN port and 4 data LAN ports of 10/100/1000 Mbps each. Subscribers in the same area can be offered dedicated and differential bandwidth based on their individual requirements .
OnAccess 45x includes the following products:
OnAccess 451S/D OnAccess 452S/D OnAccess 454S/D OnAccess 455S/D

• Optical dual rate 100baseFX or 1000baseX Ethernet WAN interface
•  Four 10/100/1000Base-TX LAN ports for user interfaces
•  Two FXS ports to connect two analog phones (optional)
•  RF CATV overlay by High-Isolation WDM(optional)
•  Built-in WiFi Access Point
•  Fiber Termination Unit and Backup battery available
•  Low power consumption solution
•  Flexible management and provisioning through Web browser, CLI, Telnet, and SNMP
•  Support for centralized management through OnAccess View EMS
