Product Description

Ø Proprietary Protocol "Fi Ring" (recovery time <20ms) and RSTP/STP for network redundancy
Ø SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network
Ø Easy network management through web browser, CLI, Telnet /serial console, Windows utility, SNMP
Ø Industrial-grade design with -40 to +75 degrees Celsius operating temperature and redundant power inputs

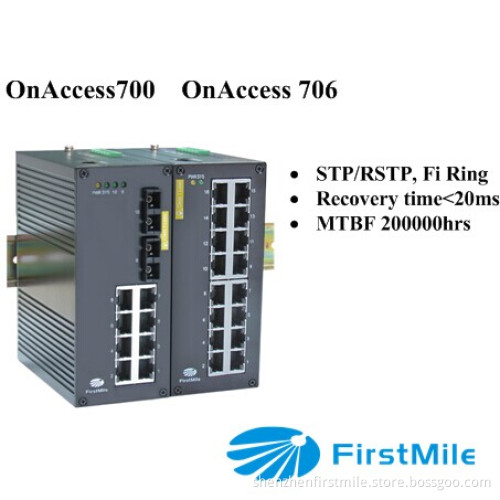

Advanced Managed Ethernet Switch With10/16 Ports Onaccess 700/706

Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.1D-2004 for STP
IEEE 802.1w for Rapid STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for Flow Control
Protocols:
IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client,
TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,
SSH, SNMP Inform, SNTP Server/Client
MIB:
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control:
IEEE 802.3x flow control, back pressure flow control
Switch Properties:
Priority Queues: 4
Max. Number of Available VLANs: 256
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 2 Mbit
Interface :
Fiber Ports: 100BaseFX
RJ45 Ports: 10/100BaseTX auto negotiation
Console Port: RS-232(RJ45 connector)
Alarm Contact: 2 relay outputs with current carrying capacity of 1A@24V
Power Requirements:
Input Voltage: 24 VDC (18 to 36VDC), redundant dual inputs
Input Current:
OnAccess 700: <0.45A@24VDC
OnAccess 706: <0.45A@24VDC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 6-contact terminal blocks
Mechanical Properties:
Housing: Metal, IP30 protection
Dimensions: 60.2 x 115.5 x 138.5 mm
Weight: 760g
Installation: DIN-Rail mounting, wall mounting
Environmental Limits:
Operating Temperature:
Standard models: 0 ~ +60°C (32 ~ 140°F )
Wide Temp. models: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5years
