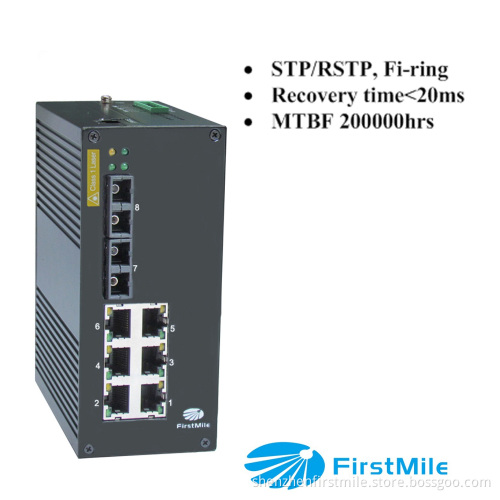

Advanced Managed Industrial Ethernet Switch IDS 608

Protocols:
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Client,
TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog,
DHCP Option 66/67/82, SSH, SNMP Inform, LLDP, IEEE
1588 PTP V2, Ipv6, SNTP Server/Client

MIB:
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control:
IEEE 802.3x flow control, back pressure flow control

Switch Properties:
Priority Queues: 4
Max. Number of Available VLANs: 256
VLAN ID Range:  VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 1 Mbit

Interface :
Fiber Ports:  100Base-FX (SC/ST/FC connector)
RJ45 Ports: 10/100BaseTX auto negotiation
Console Port: RS-232(RJ45 connector)
Alarm Contact: 2 relay outputs with current carrying capacity of 1A@24V

Power Requirements:
Input Voltage: 24 VDC (18 to 36VDC), redundant dual inputs
Input Current: 0.24A@24VDC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 6-contact terminal blocks

Mechanical Properties:
Housing: Metal, IP40 protection
Dimensions: 60.2 x 115.5 x 138.5 mm
Weight: 750g
Installation: DIN-Rail mounting, wall mounting

Environmental Limits:
Operating Temperature:
Standard Models: 0 to +60°C (32 ~ 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock:  IEC 60068-2-27
Freefall:  IEC 60068-2-32
Vibration:  IEC 60068-2-6
Warranty Period: 5years
