Basic Info

Product Description

Basic Info.

Model NO.

KWT-X6L

Flight Time

More Than 65 Minutes

Wind Tolerance

14m/S

Max Flight Speed

54km/H

Relative Flight Altitude

1000m

Max Working Elevation

5000m

GPS Position Vertical Accuracy

+/- 1.5m

GPS Position Horizontal Accuracy

+/- 2m

Remote Control Distance

7km

GS Control Distance

10km

Customized

Okay

Transport Package

Professional Design Packing

Specification

1120*540*380mm

Trademark

ALLTECH

Origin

China

Production Capacity

50000/Year

Product Description

KWT-X6L

Product Features

Carbon fiber integrated molding with high rigidity and light weight; supports more than 65 minutes flight time.
Innovative upturned arm design for flying stability and strength, ensuring wind tolerance up to 14 m/s.
Able to fly at elevation of 5000m (16500 ft).
Full HD 1080i/P real time video transmission.
Detachable structure, get ready to fly within 5 minutes.
Highly integrated rainproof gimbal unit with good rain performance.
Intelligent flying control system, supports manual precision control and autonomous flight.

Technical Parameters
Diagonal wheelbase	1600 mm
Standard take-off weight	9.8 kg
Max take-off weight	14.4 kg
Max payload weight	≥5 kg
Flight time	≥65 min (@9.8kg)
Wind loading rating	14 m/s
Max flight speed	15 m/s
Relative flight speed	1000 m
Max working altitude	5000 m
GPS position accuracy	vertical: ±1.5 m horizontal: ±2 m
Remote control distance	7 km(up to the environment)
GS control distance	10 km
Center Frame Packing Case Dimensions	1150 x 440 x 500 mm

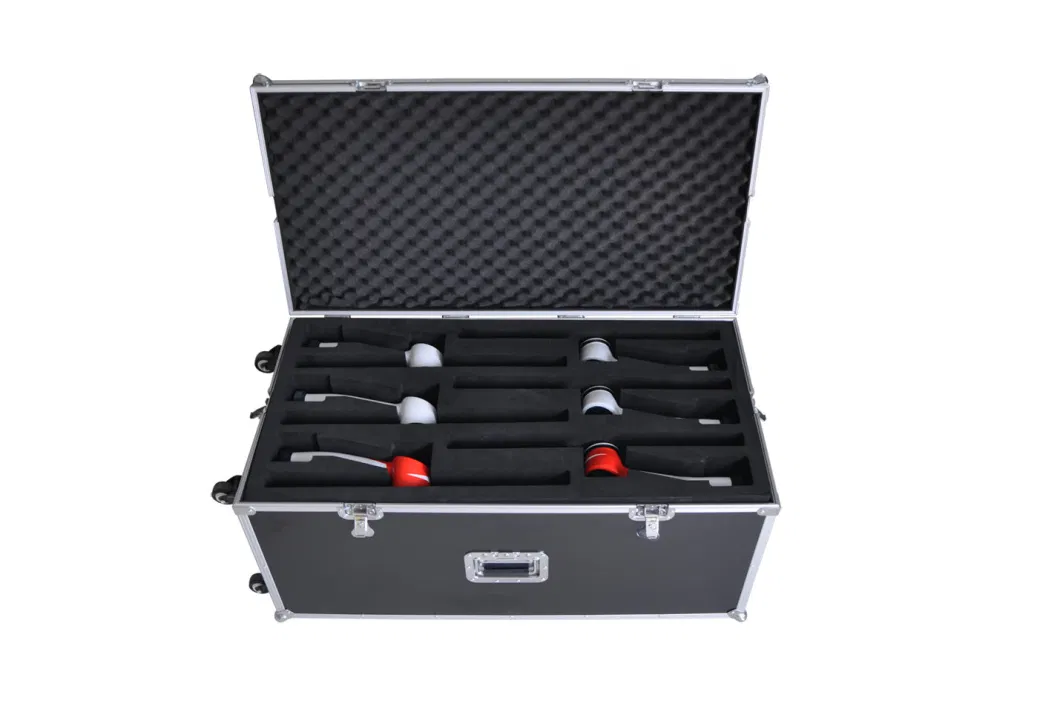

Frame Arm Packing Case Dimensions	1120 x 540 x 380 mm

Technical parameter

Self-stabilizing
Working voltage	DC12+/-0.5V
Working temp	-10~50ºC
Pitch motion range	-90°~90°
Roll motion range	-85°~85°
Level motion range	-150°~150°
Angle jitter	Pitch, roll: 0.02° Level: 0.03°
30 times HD camera technical parameters
Sensor	1/3 inch, 3 million pixels CMOS
Video output resolution	Max: 1920*1080p/60
Len	30 times optical zoom
Focus range	f=4.5~135mm
Fast focus	Focus time <1s
Dynamic range	105db
Output interface	HDMI 1.3
Control	PWM, serial port
Controllable rotational range	Roll: +/-39° Tilt: -125°~+125°
Transmitter frequency	328~352MHz/ 560~700MHz( Customizable)
Image clearness	HD1080i/p
Image delay	Lowest 260ms
Weight	<= 1.27kg
Dimension	163mm154mm230mm

Integrated Ground Station System SPELL-IG

The Integrated ground station system is a multi-function system integrated with high-definition image receiving & display, data transmission link and multi-function ground station. Using the SPELL series, aircraft can easily achieve FPV flight and control.
Features
1. Ground station system using Intel i5 processor,
powerful performance and smooth operation;
2. High-luminance screen, low reflectivity, visible in direct
sunlight without the need for lens hood;
3. Features track ball keyboard and high-precision electromagnetic stylus, easy operation;
4. Built-in 900 MHz radio module with automatic frequency hopping, effectively avoids interference;
5. Simultaneous airborne HD transmitter image receiving
and screen display;
6. HDMI video output, external connection with large screen display;
7. Local video recording;
8. Portable suitcase structure, equipped with tripod, small size and simple packing & transportation;
9. High-gain antennas for longer distance image and data transmission; easy to control.

Technical Parameters

Model	Whole Machine
Ground station board	CPU	Intel I5
Ground station board	Storage	8GB
Digital radio	Frequency range	FH 902-928 MHz
	Power output	≤ 1W
	Receiving sensitivity	≤-98 dBm @115200bps
	Bit rate	115200 bps
Image receiving	Frequency range	170 MHz-860 MHz
	Rx sensitivity	≤-92 dBm @8 Mbps ≤-98 dBm @2 Mbps
	Bandwidth	2/4/6/7/8 MHz optional
Output interface	USB	2 Unit
Output interface	HDMI	1 Unit
Display screen	10.1-inch LCD	Anti Glare Screen
Battery time	>2 HRS
Operating environment	-20° ~ 70°

Package for reference
