30km 70mins Uav Forest Fire Prevention surveillance 4K 5kg Payload

30km 70mins Uav Forest Fire Prevention surveillance 4K 5kg Payload

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

KWT-X6L

Max Flight Speed

14m/S

Relative Flight Altitude

54km/H

Max Working Elevation

1000m

GPS Position Vertical Accuracy

5000m

GPS Position Horizontal Accuracy

+/- 1.5m

Remote Control Distance

+/- 2m

GS Control Distance

7km

Customization

Yes

OEM

Yes

Max Takeoff Altitude

5000m

Transport Package

Safety Box

Trademark

ALLTECH

Origin

China

Production Capacity

50000/Year

Product Description

Remote controller and hexacopter drone KWT-X6M

Hexacopter KWT-X6L Drone

Integrated Ground Control Station(GCS)

The drone is mainly used for forest fire prevention daily surveillance, monitoring on forest fire situation, rescue assistance work and so on. The remote sense device mounted on the drone can be used to make daily surveillance, monitoring on forest fire status and detect high temperature fire point and so on rescue work, trying to nip forest fire in the bud.

Multi payloads for day and night work, perform tasks all weather anytime.

High efficiency with surveillance speed up to 10m/s and surveillance range up to 10km; stable network topology can be made by several drones for daily forest surveillance and proactive monitoring.

Comprehensive view not only for global monitoring to master the fire spread direction, but also for snapshoot of high temperature fire point to make partial key surveillance, serving as key factors for decision making.

High safety: maximum protection of fire personnel life by taking the place of firefighters for fire detection.

Portable convenience, easy operation, fast response and low environment demands for take-off and landing.

Product Features KWT-X6L Hexacopter

Carbon fiber integrated molding with high rigidity and light weight; supports more than 65 minutes flight time.
Innovative upturned arm design for flying stability and strength, ensuring wind tolerance up to 14 m/s.
Able to fly at elevation of 5000m (16500 ft).
Full HD 1080i/P real time video transmission.
Detachable structure, get ready to fly within 5 minutes.
Highly integrated rainproof gimbal unit with good rain performance.
Intelligent flying control system, supports manual precision control and autonomous flight.

Technical Parameters
Diagonal wheelbase	1600 mm
Standard take-off weight	9.8 kg
Max take-off weight	14.4 kg
Max payload weight	≥5 kg
Flight time	≥65 min (@9.8kg)
Wind loading rating	14 m/s
Max flight speed	15 m/s
Relative flight speed	1000 m
Max working altitude	5000 m
GPS position accuracy	vertical: ±1.5 m horizontal: ±2 m
Remote control distance	7 km(up to the environment)
GS control distance	10 km
Center Frame Packing Case Dimensions	1150 x 440 x 500 mm
Frame Arm Packing Case Dimensions	1120 x 540 x 380 mm

Real use:
Forest fire surveillance and emergency rescue command with fire pot and real time transmission comand.

30km 70mins Uav Forest Fire Prevention surveillance 4K 5kg Payload

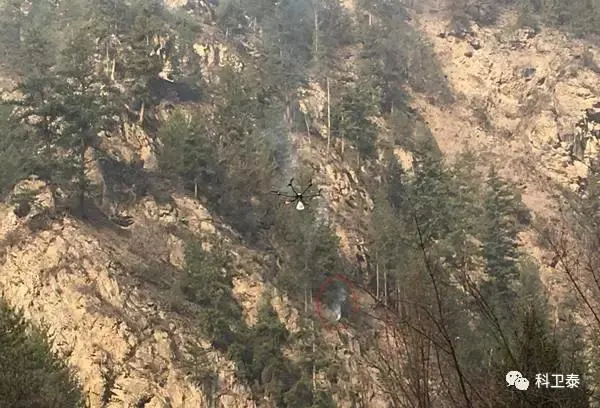

The drone helps find out the fire spot and make fire extinguishment

Other drone models and flight time

Hybrid hexacopter KWT-X6H: 3 hours long flight time without payload;
Normal hexacopter KWT-X6L:65 minutes flight time powered by battery with normal HD camera payload. and KWT-X6M/Z6M: 50 minutes long flight time with normal HD camera payload.
Normal hexacopter KWT-X6L-15 features for 15kg payload weight with 35 minutes long flight time powered by battery.
Normal quadcopter KWT-Z4M-H: 42 minutes flight time powered by battery with normal HD camera payload.
Tethered hexacopter KWT-TMOP100: More than 8 hours long for day and night surveillance.
VTOL Fixed Wing KWT-GX350: 4 Hours. (hybrid type) 2 hours( battery type)

Camera payloads and customized requests available

10X/30X Zoom HD Camera for daily surveillance;
Thermal camera for night time surveillance;
Visible light& thermal dual camera
5 lens oblique camera for surveying and mapping.

Our drone is matched use with remote controller( control distance is about 5-7km)and integrated ground control station( control distance up to 10km).
So the complete solution= a drone+camera payload+remote controller for the pilot+ integrated ground control station for the commander.

Local drone pilot training avaible.
remote control:

Item			Parameter
Screen		Size	7.02 inch
		Resolution	1200*1920
		Max brightness	1500nit
Control channels			12 channels
Frequency range			1.4GHz/2.4GHz
Transmitting power			≥23dBm
Power supply and power consumption	Working voltage		DC3.6-4.2V
	Charging time		≤2.5h
Battery life			>3h
Abnormal alarm function			Abnormal detection, alarm and display of drone status
Communication encryption function			YES
4G public network interconnection function			YES
Environment	Working temperature		-20ºC~50ºC
	Storage temperature		-30ºC~60ºC
Size			282mm156mm61mm
Weight			945g±30g
