24 Hours Long Flight Time Tethered Uav/Drone System

24 Hours Long Flight Time Tethered Uav/Drone System

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

KWT-TMOP-100

Endurance

8 Hours

Payload Capacity

5kg

Cable Length

120m

Max. Takeoff Weight

10-25kg

Transport Package

Safety Box

Specification

1150mm*440mm*500mm

Trademark

SPELL

Origin

Shenzhen, China

Production Capacity

5000sets

Product Description

Tethered UAV System KWT-TMOP-100

Keweitai tethered UAV system for Permanent Surveillance is a solution dedicated to unlimited surveillance missions. Secured by a KWT-X6L multi-rotor UAV, a cable, combining power ground supply and ground high-power transmitting module, it is ideal for operation that requires long endurance and high detection performance.

Technical Parameters

Max take-off weight 10-25Kg
Flight time >8h
Tethered flight altitude 100m
Altitude hold ±2m
Hovering accuracy ±1.5m
Course angle accuracy ±3°
Emergency landing time <1min
Deploy landing time <4min
Model KWT-X6L
Airborne power supply 1800W/3200W/6000W
Backup battery 5200mAh 35C
Diagonal wheelbase 1600mm
Payload weight 3Kg/5Kg/10Kg

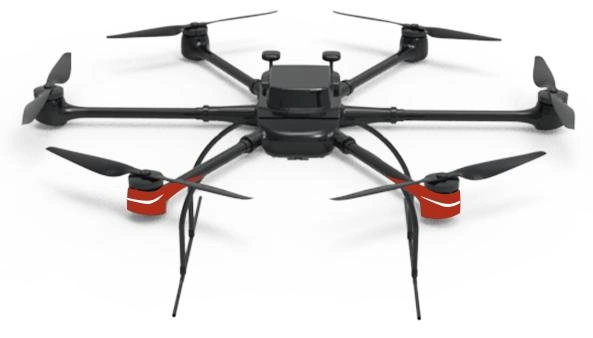

15kg drone:
24 Hours Long Flight Time Tethered Uav/Drone System

SN	Item	Parameter
1	Body material	Carbon fiber
2	Symmetrical motor wheelbase	1765±10mm
3	Empty weight	10±0.2kg (without batteries)
4	Standard takeoff weight	22±0.2kg (including 2 pieces of high voltage batteries and 0.5kg load)
5	Maximum takeoff weight	≤37.5kg±0.2kg
6	Maximum working load	15kg
7	Flight time	75min (Altitude <=1000m, 25 ºC)
8	Full load flight time (15kg)	30min (Altitude <=1000m, 25 ºC)
9	Flying time with detonation bomb payload (with 12pcs of 48mm bombs at the same time)	≥50min (Altitude <=1000m, 25 ºC)
10	Maximum flight speed	18m/s
11	Relative flight height	4000m (Plain)
12	Maximum working altitude (above sea level)	5000m (2000m relative height above ground)
13	Wind tolerance	13.9m/s-17.1m/s
14	GPS hover accuracy	Horizontal direction: ±2m
14	GPS hover accuracy	Vertical direction: ±1.5m
15	Remote control distance	7km (depending on the local electromagnetic environment)
16	Ground station control distance	10km (depending on the local electromagnetic environment)

Ground Control Parameters
Cable length              120m
Cable release mode        keyed automatic control
Input voltage             AC220V±10%@50Hz
Input current             <15A
Input power              <3000W

Output voltage            DC375V±10%
Output current            <10A
Output power             3000W/6000W

Tether Cable Parameters
Insulation                 2000V
Tensile                   >50kg
Hectometer resistant       <2.2R/1R
Carrying capacity          7A/15A
Weight                   2kg/3.8kg@100m
Optical fiber properties           single mode10Gb/s*
Remark: *optical fiber version

Features

>8 hours flight time
100 meters liftoff height
High stable hovering
Backup battery switch
Intelligent cable release
3000W power interchange
Safe high throughput of optical fiber
transmission(optical fiber version)
Automatic following

Main Applications
Day and night missions; Radio relay; Gas detection;
Crisis management; Site protection; air-drop goods;
Traffic surveillance; Large-scale events security;
Forest surveillance; Industry monitoring; Air-quality monitoring
