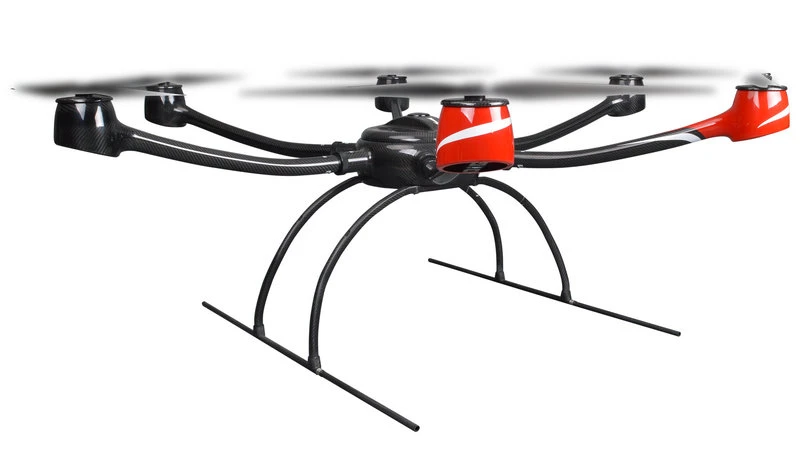

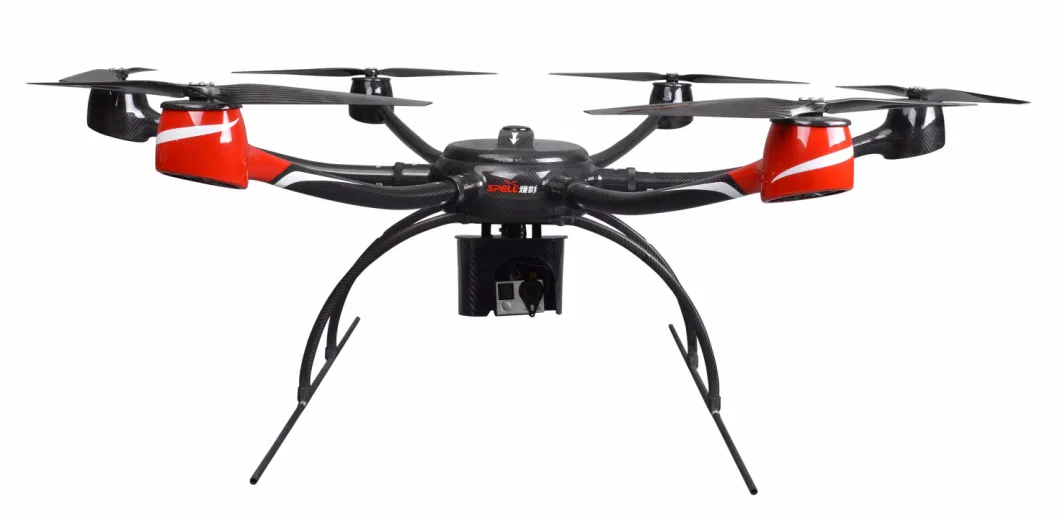

6-Rotor Drone for Daily Patrol and Surveillance 30km 70 Minutes

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

KWT-X6L

Flight Time

More Than 65 Minutes

Wind Tolerance

14m/S

Max Flight Speed

54km/H

Relative Flight Altitude

1000m

Max Working Elevation

5000m

GPS Position Vertical Accuracy

+/- 1.5m

GPS Position Horizontal Accuracy

+/- 2m

Remote Control Distance

7km

GS Control Distance

10km

Transport Package

Professional Design Packing

Specification

1120*540*380mm

Trademark

ALLTECH

Origin

China

Production Capacity

50000/Year

Product Features

Technical Parameters
Diagonal wheelbase	1600 mm
Standard take-off weight	9.8 kg
Max take-off weight	14.4 kg
Max payload weight	≥5 kg
Flight time	≥65 min (@9.8kg)
Wind loading rating	14 m/s
Max flight speed	15 m/s
Relative flight speed	1000 m
Max working altitude	5000 m
GPS position accuracy	vertical: ±1.5 m horizontal: ±2 m
Remote control distance	7 km(up to the environment)
GS control distance	10 km
Center Frame Packing Case Dimensions	1150 x 440 x 500 mm
Frame Arm Packing Case Dimensions	1120 x 540 x 380 mm

Real use:
Joint anti terrorism" Tianshan No.3(2017)" held by SCO on June 27th,2017
6-Rotor Drone for Daily Patrol and Surveillance 30km 70 Minutes
