Basic Info

Product Description

Basic Info.

Model NO.

KWT-K150

Maximum Measurement and Control Distance

30km (Los)

Maximum Level Flight Speed

150km/H

Maximum Endurance

12 Hours

Maximum Takeoff Weightt25kg

150kg

Control Modetfully Autonomous Control

Fully Autonomous Control

Maximum Wind Tolerance

Level 7

Power Type

Hybrid

Transport Package

Aluminum Case

Specification

carbon fiber

Trademark

ALLTECH

Origin

China

Production Capacity

500/Year

Product Description

Introduction:

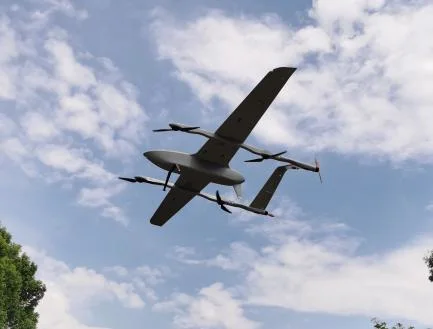

KWT-K150 hybrid vertical take-off and landing fixed wing drone, adopts the compound pneumatic design of four rotor and fixed wing.
It is stable and reliable, specially developed for emergency disaster relief, emergency supplies delivery and other applications, features 50kg large load, multi-function (like surveillance, cargo transportation, fire fighting, etc), more than 600km long endurance.
Max 600km 12h Endurance 50kg Task Payload Hybrid Vtol Fixed Wing Drone

Spec:

SN	Item	Parameter
1	Type	Hybrid vertical takeoff and landing fixed wing drone
2	Size	650032641170mm
3	Maximum takeoff weight	150kg
4	Maximum task load	50kg
5	Endurance time	12 hours without load
6		10 hours with standard payload camera
7		8 hours with 30kg
8		6 hours with 40kg
9		> 2 hours with 50kg
10	Maximum level flight speed	150km/H
11	Cruising speed	90km/H
12	Max flight and working altitude	5500m
13	Max takeoff altitude	4000m
14	Max control distance	30km (LOS, if need, pls contact sales as normally it is 10km)
15	Wind resistance	Class 7 for level flight Class 6 for takeoff
16	Withstand inclement weather	light rain, snow and mist
17	IP	IP45
18	Mounting points	4 ponits
19	Payloads supported	Tri-optics camera payload, five-lens 3D modeling camera payload, thrower, airborne public network base station, airborne PDT cluster base station, airborne broadband AD hoc network equipment, onboard crew search and rescue payload,onboard SATcom equipment, etc.
20	RTK	Support; with strong anti-interference ability and no need to calibrate the compass
21	IMU redundancy	Built-in no less than 3 sets of IMU control system, can be seamlessly and smoothly switched in the air to improve flight safety
22	GPS redundancy	Built-in no less than 2 sets of GPS navigation system, even failure with one, the drone can still work normally, thus improve flight safety
23	Safety	One key return/digital signal loss return/low power return; Large angle abnormal attitude return/critical abnormal sensor return
24	Control mode	Support autonomous flight and manual flight
25	Navigation light	Support. left: red, right: green
26	Battery charging	2 hours
27	Fuel tank volume	40L
28	Normal working temp.	-10-60ºC
29	Packaging carton size	232014201100mm
30	Time to Install together	within 10 minutes
