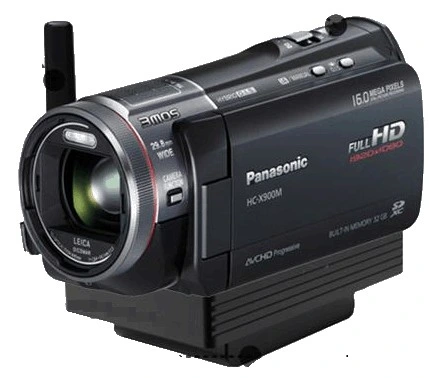

HD Boardcassting Handheld Video Transmitter

HD Boardcassting Handheld Video Transmitter

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

MV2025TWSP

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000 Pieces/Year

Product Description

Functions & Features:
Hand-held design with IP67 waterproof standard; Video transmitting while filming;
Small dimension and light weight with great convenience;
Full HD video transmission with video resolution up-to 1080i/P;
COFDM modulation and H. 264 high-level video compression;
RF power and bandwidth adjustable to avoid electromagnetic interference;
Portable repeater compatible to realize long range;
Multiple receiving systems optional for diversity applications;
Superior compatibility to satellite or HD video session system

Power Supply
Working Voltage V	DC7V~DC16.8V
Working Current A	≤0.6A@DC12V
Video Transmission
Frequency output range	300MHz~450MHz,560~760MHzor user customized
RF bandwidth	1.5/2/4/6/7/8MHzadjustable
Power output	150mW~200mW
Tx SNR	≥30dB @ 22dBm
SHG	>52dBc
Encryption	AES128/256, SHA-256or ALLTECH Basic Scrambling
Modulation	COFDM
Constellation	QPSK, 16QAM, 64QAMoptional
FEC	1/2, 2/3, 3/4, 5/6,7/8optional
Carrier	2K
GUI	1/32, 1/16, 1/8, 1/4optional
Power flatness	Full-band ≤1dB; 8MHz(within) ≤0.5dB
RS232control interface	Standard RS232level, 9600, 8, N, 1
RS232data interface	Standard RS232level, support 1200~115200
CVBS
Video white bar amplitude (mV)p-p	700
Video synchronous amplitude (mV)p-p	300
SNR (not weighted) dB	60
sloping field SNR (not weighted)dB	56
Analog Audio
Balanced audio input amplitude	Vmax=±15V
Unbalanced audio input amplitude	Vmax=3Vpp
HDMI
Version	HDMI 1.3
HDCPprotocol	Support
Video Encoding
A/V bitrate	64, 96, 112, 128, 160, 192, 224, 256, 320, 384Kbpsadjustable
Audio encoding	MPEG1 Layer2
Video resolution	Minimum 720×480/60i(720×576/50i )
Video resolution	Maximum 1920×1080/60Pself-adapted
Video encoding	H.264
Video bitrate	500kbps-16.68Mbpsself-adapted
Format	YCbCr4:2:0
Camera Shooting
Sensor pixels	9.15Mega pixels(3.05MegapixelsX3)
Dynamic effective pixels	7.11Megapixels(2.37Megapixelsx 3) [3:2] 6.57 - 6.21Megapixels(2.19 - 2.07Megapixelsx 3) [16:9] 6.87Megapixels(2.29Megapixelsx 3) [4:3]
Optical zoom	12times
Sensor type	MOSsensorx 3
Sensor size	1/4.1inch
Night shooting	1Lux
Anti-shake	Hybrid optical anti-vibration + Optical image stabilization lock
Video recording	1080/50p (28Mbps / VBR), (1920 x 1080) HA (17Mbps / VBR), (1920 x 1080) HG (13Mbps / VBR), (1920 x 1080) HX (9Mbps / VBR), (1920 x 1080) HE (5Mbps / VBR), (1920 x 1080) iFrame (28Mbps / VBR), (960 x 540) AVCHD 3D (28Mbps / VBR), (1920 x 1080) SbS (17Mbps / VBR), (1920 x 1080)
Storage Media	RAM (32GB), SD, SDHC, SDXCmemory card
Input/output interface	USB2.0HS, AVmultimedia, HDMI (mini), MIC, earphone
Power supply	Lithium battery (1,250mAh)
LCD size	3.5inch widescreen
Focal length	2.84 - 34.1mm 35mm film camera equivalence 29.8 - 368.8mm [16:9]
Filter/ diameter	49mm
Lens	Leica(LEICA)Dicomarlens
Aperture (F)	F1.5(wide angle) / F2.8(telescope)

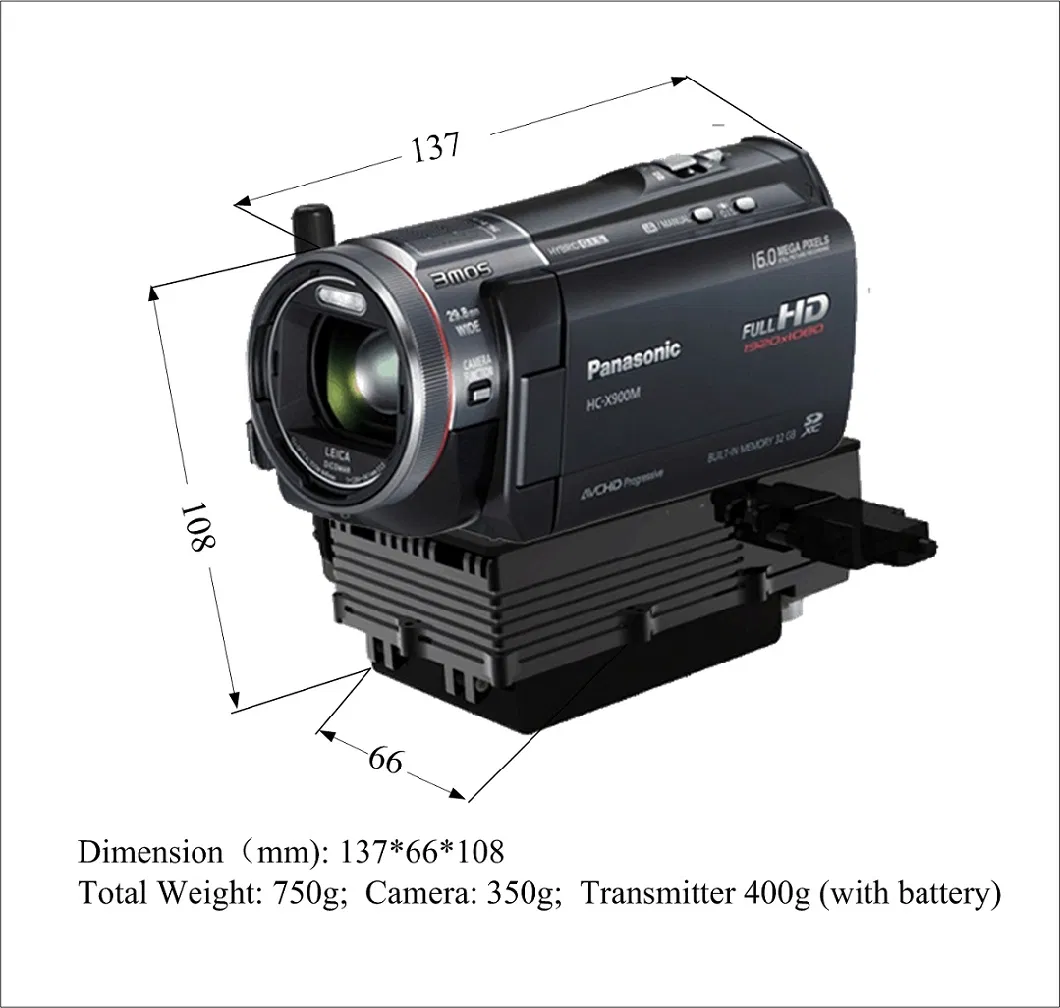

Appearance
Weight	750g
Dimension	13766108mm
Environment
Working temperature	-25 °C~55 °C
Storage temperature	-40 °C~70 °C
