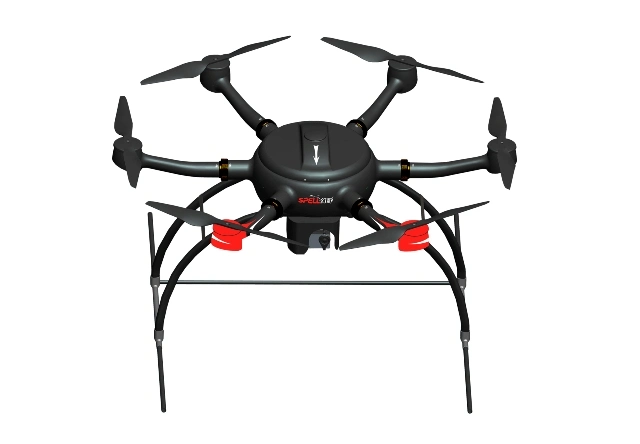

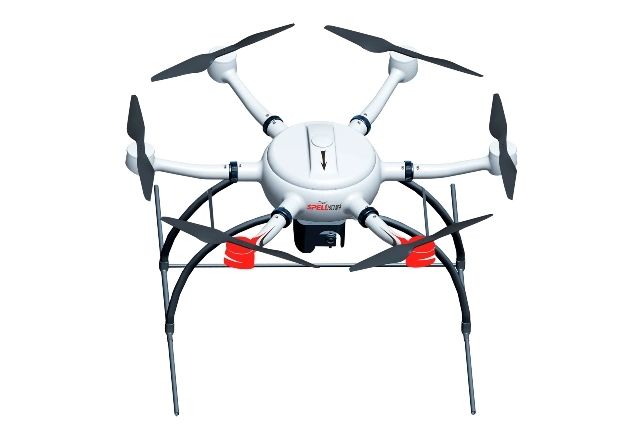

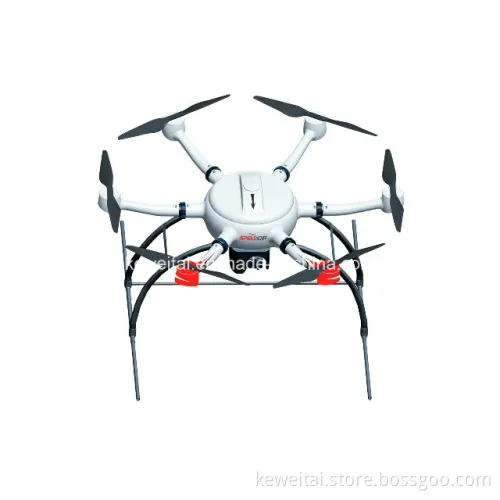

30km 4K Camera Hexacopter China Customization for Surveillance Firefighting

30km 4K Camera Hexacopter China Customization for Surveillance Firefighting

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

Spell X6M

Colour

White&Black

Distance

3-10km

Weight

7.5kg

OEM

Yes

Customization

Yes

Mas Takeoff Altitude

5000m

Transport Package

Safety Box

Specification

Carbon fiber

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000 Pieces/Year

Product Description

System Characteristic

- Carbon fiber all-in-one structure, strong rigidity and light weight
- Plug-in quick release (detachable)structure for easy transportation
- Overlong endurance and flying distance
- Rainproof design, stable performance in raining condition
- Strong wind resistance ability
- Superior dynamic redundancy adapting to high-altitude performance

Video Gathering and Real-time Transmission

- Brushless auto-stable gimbal, clear and stable image
- Gopro action camera, 10x zoom lens, infrared thermal camera and switchable twin-lens optional
- 1080P full HD digital video transmission system
- 20Km+ transmission distance
- Repeater compatible to perform as relay for ground video transmission devices

standard take-off weight	7.5kg
max take-off weight	10kg
payload weight	3kg
flight time	50min(@ 7.5kg)
max flight speed	10m/s
relative flight height	1000m
wind loading rating	12m/s
working altilude	4000m

Smart tablet	Screen	11 inch, 2.5K LCD, hardware-level anti blue light
	Internal storage	8+256G
	Processor	Qualcomm Snapdragon870
Control channel		16 channels
Frequency range		1.4GHz/2.4GHz (customization)
Transmission power		≥27dBm
Rx sensitivity		≤-96dBm@8M (No code errors and packet loss)
Image delay		<300ms
Power and power consumption	Working voltage	DC3.4-4.2V
	Working currency	900mA±50mA@4.2V
	Charging time	≤4h
Battery life		≤4h
Transmission distance		Omni directional antenna: 5km (visual without interference) Directional antenna: 10km (visual without interference)
Abnormal alarm function		Abnormal detection, alarm and display of aircraft status
Communication encryption function		Support
4G public network interconnection function		Support
Picture and data integration function		Support
Environment	Working temperature	-20ºC~50ºC
	Storage temperature	-30ºC~60ºC
Antenna height		1.4m-2.1m adjustable
Size		440mm171mm59mm (main body)
Weight		1340g±10g (main body) 2365g±20g (tripod and plate antenna)
Tripod height		≥2m
