2W Wireless Video Cofdm Transmitter

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

MV2025

Oscillator Circuit

LC or Crystal Oscillator

Transport Package

Carton

Specification

SGS

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000pieces/Year

Product Description

Functions & Features:
n   ABS/AES encryption
n   Duplex-audio communication
n   Working frequency adjustable within specified range
n   Multiple bandwidth output
n   Double lithium batteries with more than 4 hours' lastimg time continuously
n   One-channel video and two-channel audio (left/right channel) simultaneously input
n   Left/right channel audio and unbalanced stereo input
n   Transmitter power output adjustable
n   GFSK digital audio modulation, narrow receiving bandwidth and high sensitivity
n   Good voice quality with internal en/decryption
n   Audio frequency adjustable with built-in 64 channels and 24 addresses
n   Fully-enclosed waterproof case, dustproof and good impact resistance

2W Wireless Video Cofdm Transmitter

Power Supply
Working voltage V				DC12V~DC16V
Working current A				≤2.5A@DC12.5V
Video Transmission
Frequency output range	300MHz~450MHz,560~760MHz or user customzied
RF bandwidth MHz	1.5/2/4/6/7/8MHz adjustable
Power output	21~36dBm power output adjustable with 1dB step
C/N	≥28dB@32dBm
SHG	>52dBc
Encryption	AES/ALLTECH Basic scrambling
Modulation	COFDM
Constellation	QPSK/16QAM @ 1.5/2MHz QPSK/16QAM/64QAM @ 6/7/8MHz
FEC	1/2,2/3,3/4,5/6,7/8 optional
Carrier	2K
GUI			1/4, 1/8, 1/16, 1/32 op
Video encoding			H.264
Video input level			1~1.2Vp-p@75Ω
Video input format			PAL/NTSC
Video resolution			720x576(PAL) 720x480(NTSC)
Video white bar amplitude mV			650~720mV
Video synchronous amplitude mV			260~275mV
Video amplitude-frequency characteristic dB			0~4.8MHz			-0.5~1.5
			5.5MHz			-4.0~1.5
Audio input			Left/right channel, stereo
RS232 control interface			Standard RS232 level, 9600, 8, N, 1
RS232 data interface			Standard RS232 level, support 1200~115200
Audio Receiving
Audio Rx frequency range				470.5~479.950MHz, factory setting:479.950MHz
Audio Rx sensitivity				≤-111dBm
Audio Tx modulation				GFSK
Frequency step				150KHz
Audio decoding overall bitrate				4800bps
Audio output				2.1Vpp (open circuit output)
Environment
Protect standard					IP66, dustproof and rainproof
Working temperature					-25°C~55°C
Storage temperature					-40°C~70°C
Appearance

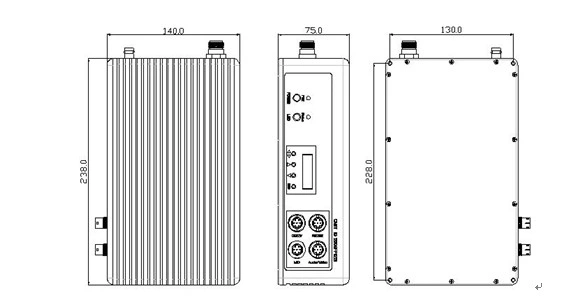

Dimension		238mm×140mm×75mm
Weight		2.5kg (without frame carrier and battery)
