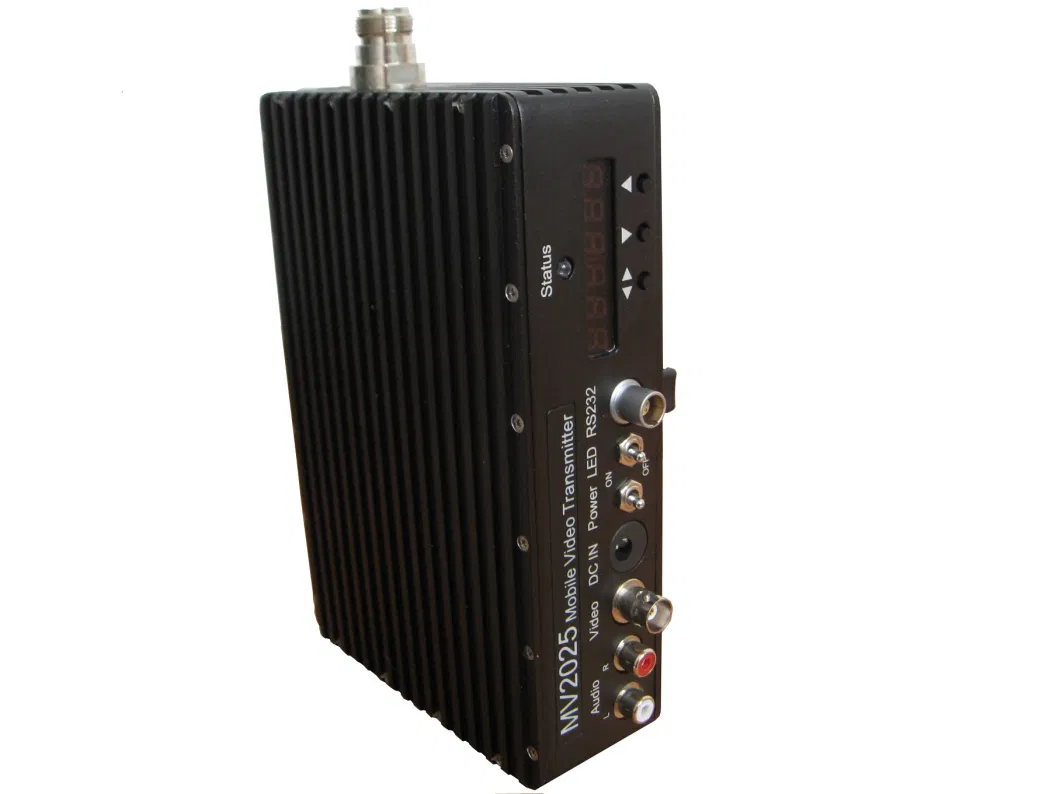

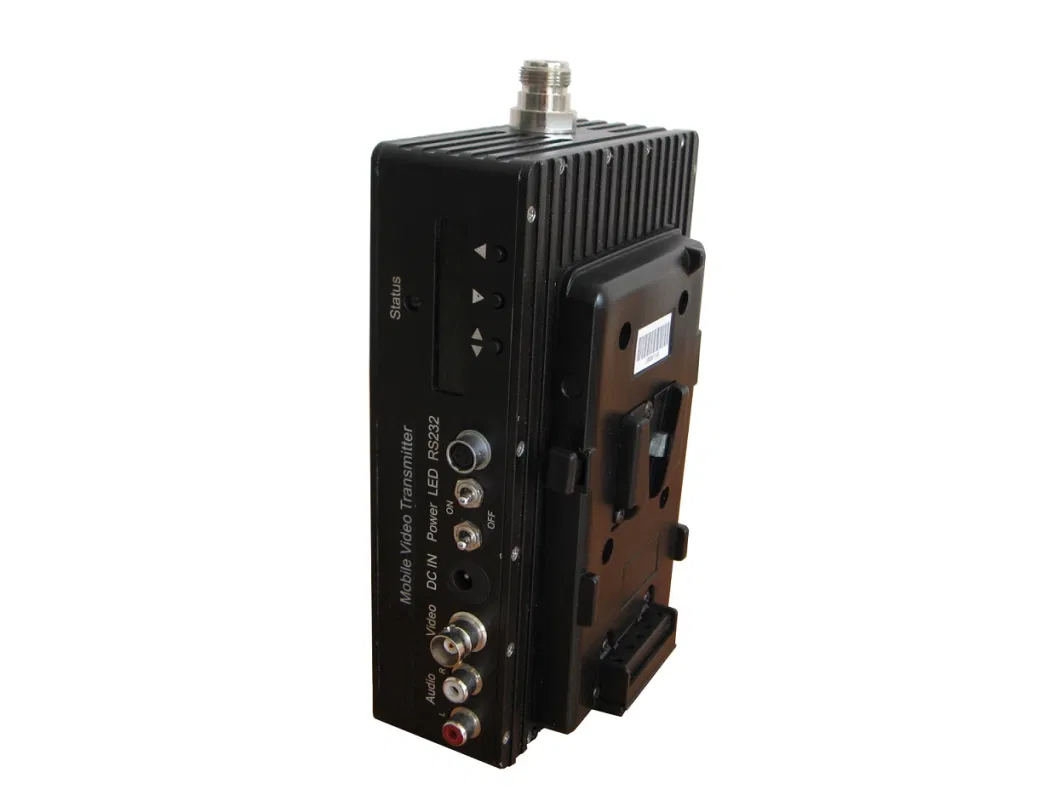

Broadcasting Camera Mount Mobile Video Transmitter

Broadcasting Camera Mount Mobile Video Transmitter

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

MV2025TKME

Specification

ISO

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000 Units/Year

Product Description

Functions & Features:
- Super low latency
- ABS encryption
- Portable and practical with simple operation
- Working frequency directly display on panel
- Working frequency adjustable within specified range
- Builtin high-performance power amplifier
- COFDM modulation and MPEG-2 video compression for stable and high-quality transmission
- A/V signal simultaneously input, one-channel video input
- Left/right channel audio and unbalanced stereo input
- 1.25/2.5/6/7/8MHz multiple bandwidth output
- Video input PAL/NTSC optional (default as PAL)

Power Supply
Working voltage V			DC12V~DC16V
Working current A			≤2.5A@DC12.5V
Battery lasting			2.5 hours
Video Transmission
Frequency output range	300MHz~450MHz,560~760MHz or user customized
RF bandwidth	6/7/8MHz or 1.25/2.5MHz
Power output	18~33dBm adjustable with 1dB step
C/N	30dB @ 30dBm
SHG	>52dBc
Encryption	AES/ALLTECH Basic Scrambling
Modulation			COFDM
Constellation			QPSK,16QAM,64QAM optional QPSK/16QAM/64QAM @ 6/7/8MHz
FEC			1/2,2/3,3/4,5/6,7/8 optional
Carrier			2K
Video encoding				MPEG-2/MPEG-4
Video input level			1Vp-p@75Ω,PAL
Video resplution					720×576(PAL) 720×480(NTSC)
Power flatness			Full band ≤2dB, 8MHz (within)≤0.5dB
A/V interface		BNC/RCA
Video bitrate			15Mbps(MAX)
RS232 control interface			Standard RS232 level, 9600, 8, N, 1
RS232 data interface			Standard RS232 level, support 1200~115200
CBER			<2.0E-4
Environment
Working temperature	-25°C~55°C
Storage temperature	-40°C~70°C
Appearance
Dimension			193.6mm×116mm×66.8mm
Weight			1.27kg
