Basic Info

Product Description

Basic Info.

Model NO.

MV2025Y

From

Shenzhen, China

Usage

Long Distance Video Transmission

Selling

Cofdm Wireless Mobile Video Transmission System

Transport Package

Box

Trademark

ALLTECH

Origin

Shenzhen

Production Capacity

10, 000 PCS/Year.

Product Description

Functions& Features:
- Remote wireless PTZ command control (RS486 control)
- DC (lithium battery) and AC power supply
- COFDM modulation and MPEG-2 video compression
- Encrypted transmission for higher security
- Low-light camera compatible with high-speed PTZ control and zoom lens
- Receiver builtin networked transmission (MPEG-4/H.264) and recording functions
- Portable application and simple installation(no use any tool for installation)
- Center wireless control of transmitter switching power supply

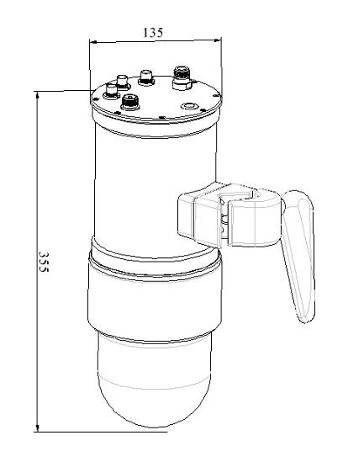

Dimensions:

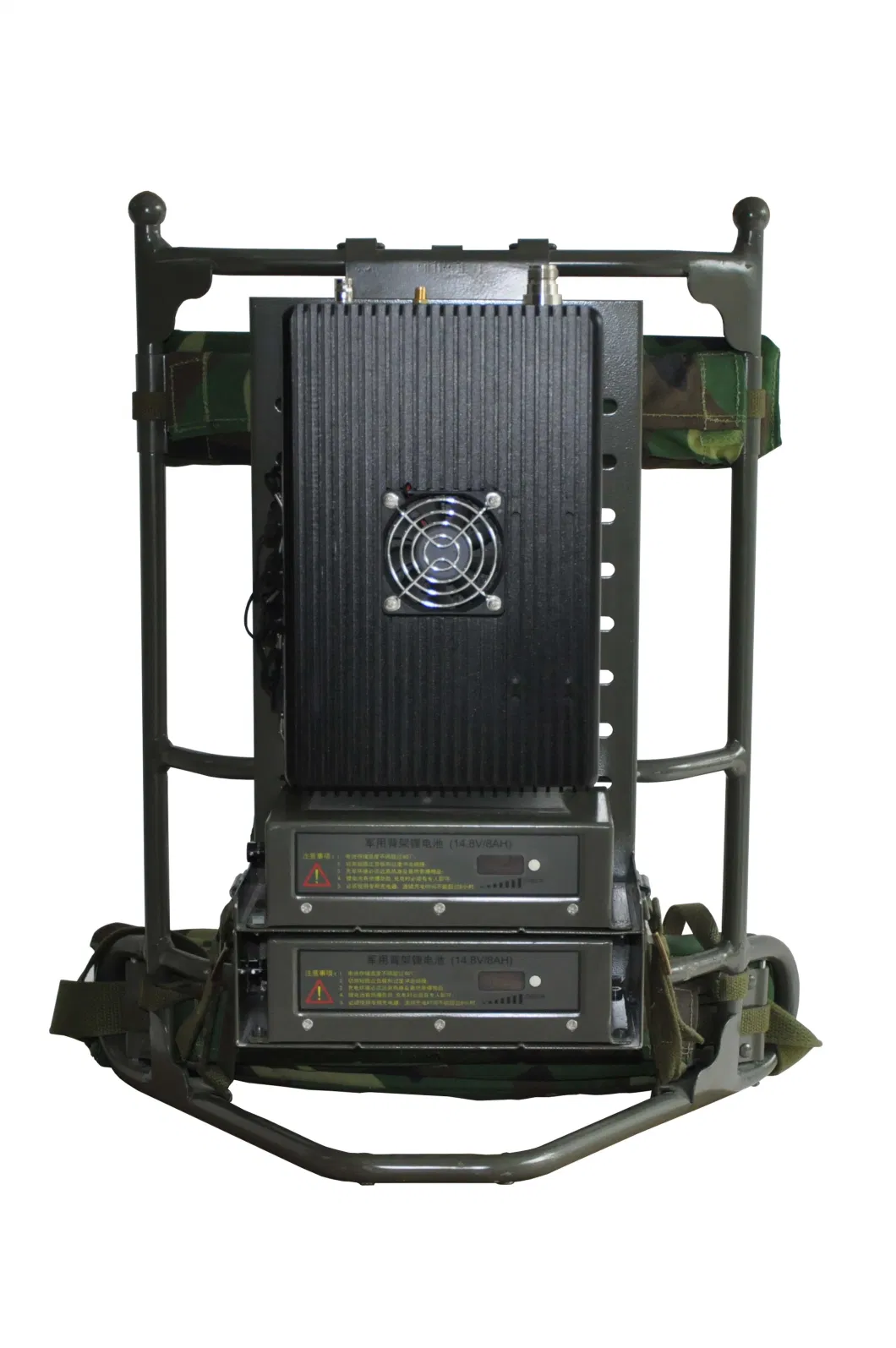

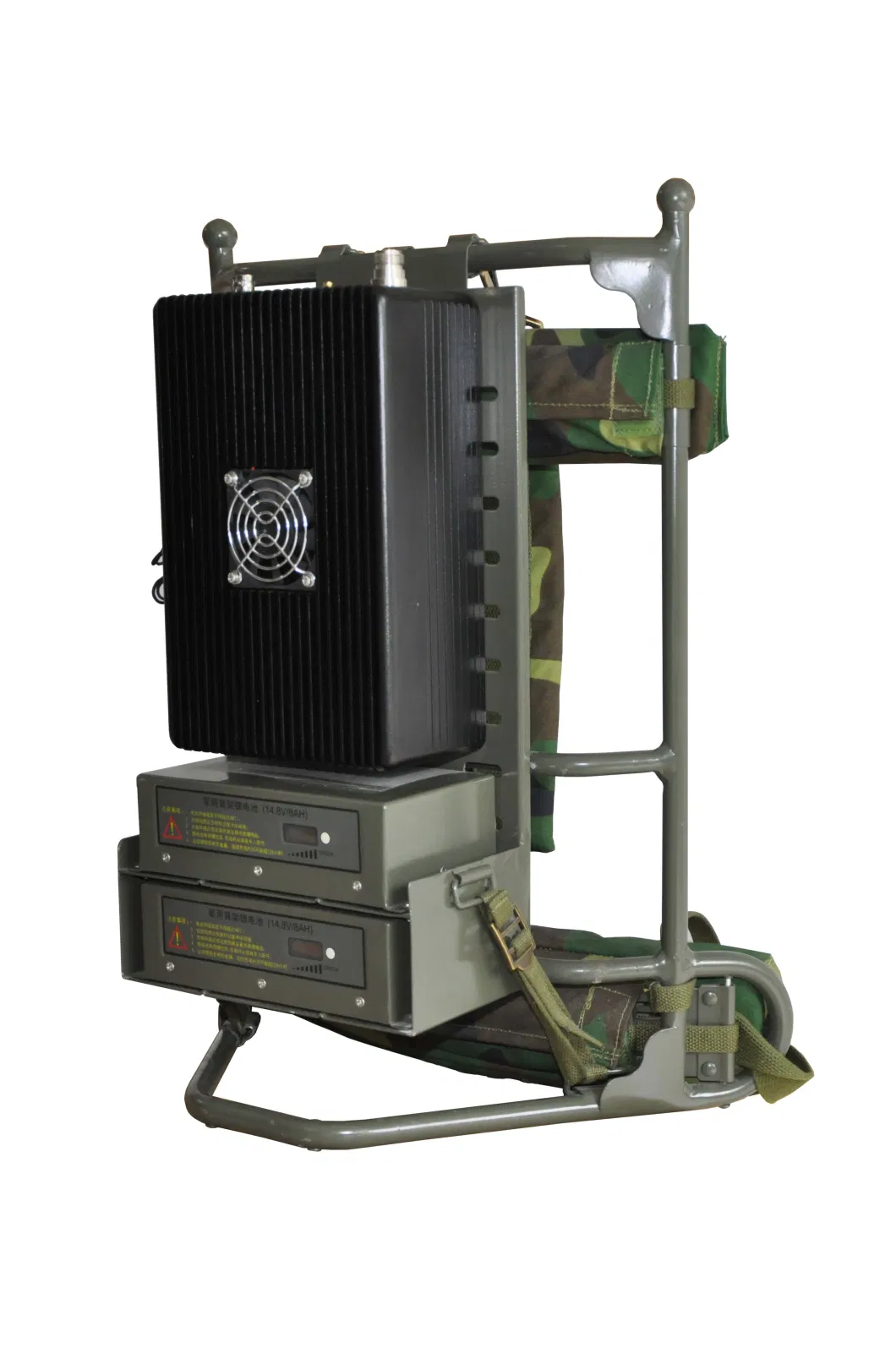

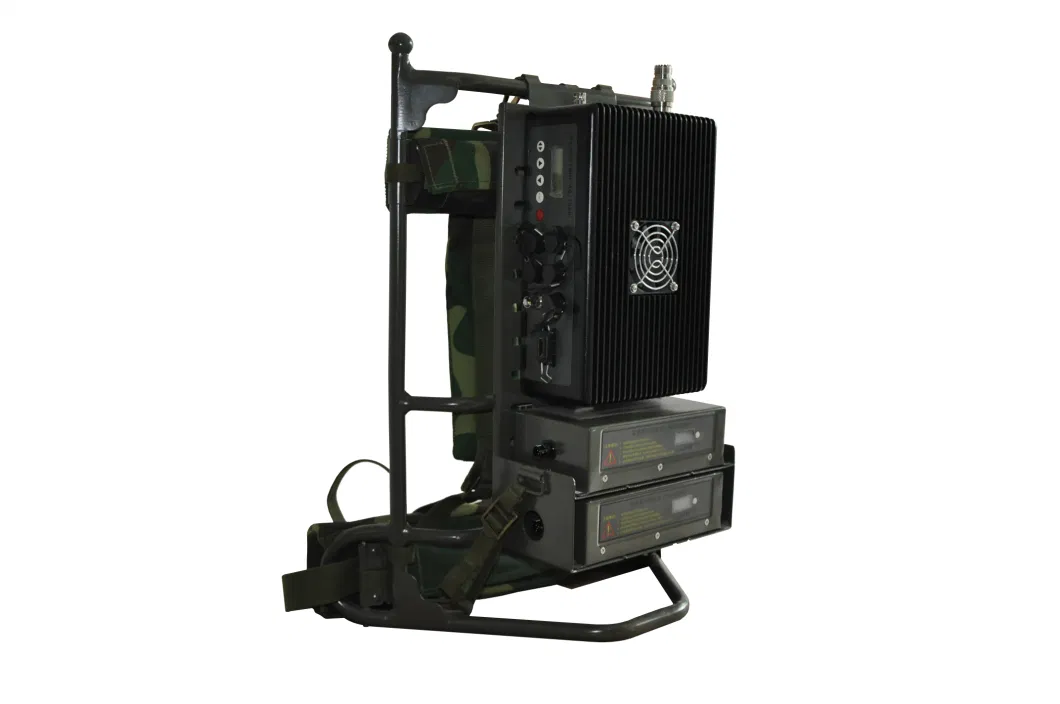

MV2000TBHF-A/264 Manpack Mobile Video Transmitter with Duplex-audio

Functions & Features:

ABS/AES encryption
Duplex-audio communication
Working frequency directly display on panel
Working bandwidth adjustable range upto 200MHz
Double lithium batteries with more than 4 hours' lasting time

One-channel video and two-channel audio (left/right channel) simultaneously input
Left/right channel audio and unbalanced stereo input
Transmitter power output adjustable
GFSK digital audio receiving modulation, narrow receiving bandwidth and high sensitivity
Good voice quality with internal en/decryption
Audio frequency adjustable with built-in 64 channels and 24 addresses
Fully-enclosed waterproof case, dustproof and good impact resistance

Specifications:

Power Supply
Working voltage V				DC12V~DC16V
Working current A				≤2.8A@DC12.5V
Video Transmission
Frequency output range					300MHz~450MHz,560~760MHz or user customized
RF bandwidth MHz					2MHz (fixed)
Power output					21~36dBm power adjustable with 1dB step
C/N					≥28dB@33dBm
SHG					>52dBc
Encryption					AES/ALLTECH Basic scrambling
Modulation					COFDM
Constellation					QPSK,16QAM,64QAM optional QPSK/16QAM/64QAM @ 6/7/8MHz
FEC					1/2,2/3,3/4,5/6,7/8 optional
Carrier					2K
GUI			1/4, 1/8, 1/16, 1/32 optional
Video encoding			H.264
Video input level			1~1.2Vp-p@75Ω
Video input format			PAL/NTSC
Video resolution			720x576(PAL) 720x480(NTSC)
Video white bar amplitude mV			650~720mV
Video synchronous amplitude mV			260~275mV
Video amplitude-frequency characteristic dB			0~4.8MHz			-0.5~1.5
			5.5MHz			-4.0~1.5
Audio input			Left/right channel, stereo
RS232 control interface			Standard RS232 level, 9600, 8, N, 1
RS232 data interface			Standard RS232 level, support 1200~115200
Audio Receiving
Audio Rx frequency range				470.5~479.950MHz, factory setting: 479.950MHz
Audio Rx sensitivity				≤-111dBm
Audio Tx modulation				GFSK
Frequency step				150KHz
Audio decoding overall bitrate				4800bps
Audio output				2.1Vp (open circuit output)
Environment
Protect standard	IP66, dustproof and rainproof
Working temperature	-25°C~55°C
Storage temperature	-40°C~70°C
Appearance
Dimension		238mm×140mm×75mm
Weight		2.5kg
