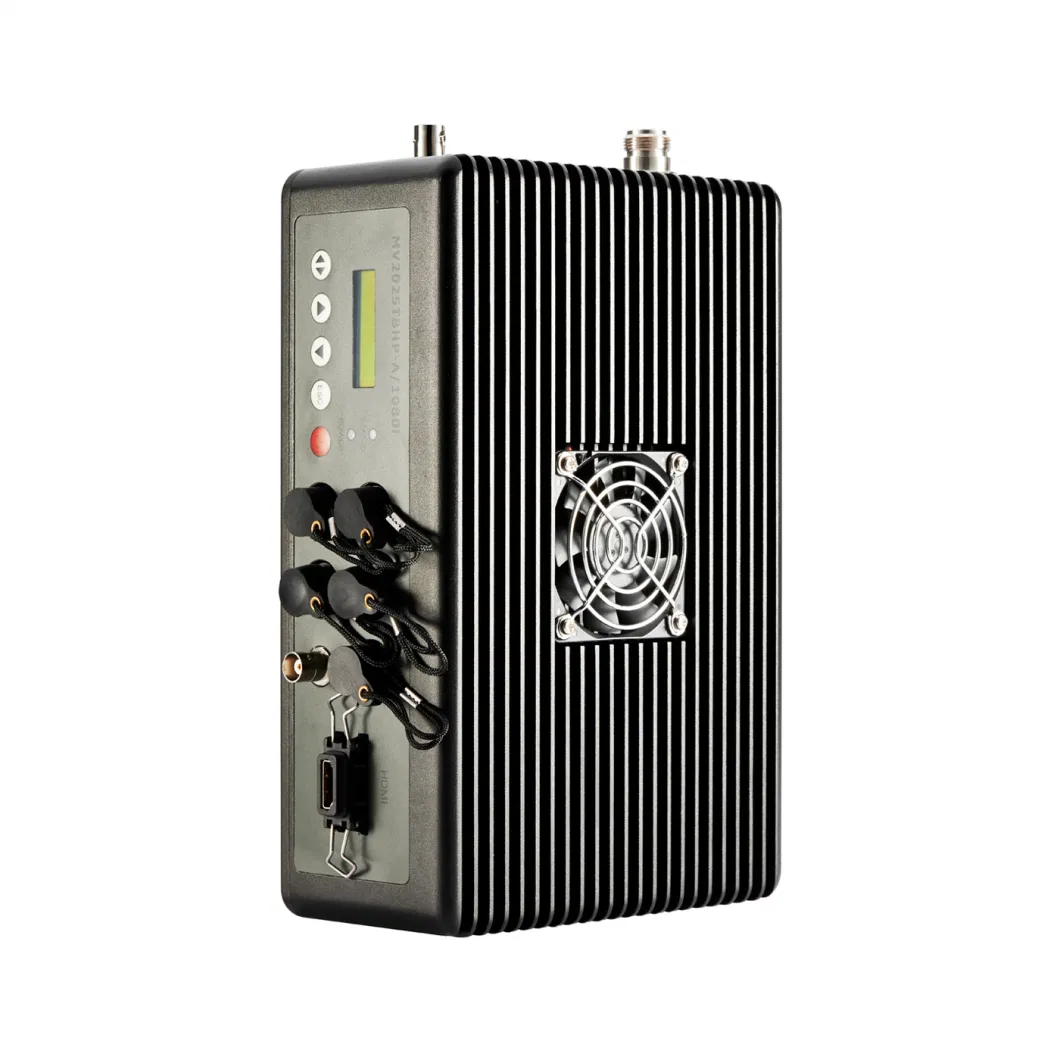

Uav Drones Portable Wireless Video Transmitter Tx

Uav Drones Portable Wireless Video Transmitter Tx

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

MV2025TBHF

Modulation

16qam, 64qam, Qpsk

Oscillator Circuit

LC or Crystal Oscillator

Working Voltage

DC12V-16V

Encryption

AES/Alltech Basic Scrambling

Gui

1/4,1/8,1/16,1/32 Optional

Carrier

Audio Input

Left/Right Channel,Stereo

GPS

Yes

Sensitivity

-165dBm

Transport Package

Carton

Specification

SGS

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000pieces/Year

Product Description

Wireless AV Transimission Modules

Functions & Features:

N ABS/AES encryption
N Duplex-audio communication and GPS functions
N Working frequency directly adjustable on panel
N Working bandwidth adjustable range upto 200MHz
N Double lithium batteries with more than 4 hours' lasting time
N One-channel video and two-channel audio (left/right channel) simultaneously input
N Left/right channel audio and unbalanced stereo input
N Transmitter power output adjustable
N GFSK digital audio modulation, narrow receiving bandwidth and high sensitivity
N Good voice quality with internal en/decryption
N Audio frequency adjustable with built-in 64 channels and 24 addresses
N aluminium alloy case, waterproof, dustproof and good impact resistance

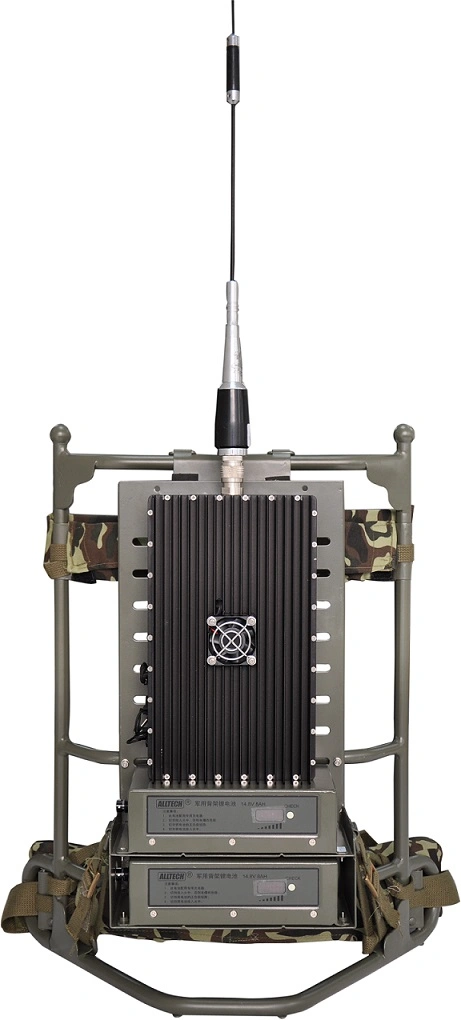

N standard frame carrier, fully-enclosed waterproof case for higher system safety

Power Supply
Working voltage V	DC12V~DC16V
Working current A	≤2.8A@DC12.5V
Video Transmission
Frequency output range		300MHz~450MHz,560~760MHz or user customized
RF bandwidth MHz		2MHz (fixed)
Power output		21~36dBm power output adjustable with 1dB step
C/N		≥28dB@32dBm
SHG		>52dBc
Encryption		AES/ALLTECH Basic scrambling
Modulation		COFDM
Constellation		QPSK,16QAM,64QAM optional QPSK/16QAM/64QAM @ 6/7/8MHz
FEC		1/2,2/3,3/4,5/6,7/8 optional
Carrier		2K
GUI			1/4, 1/8, 1/16, 1/32 optional
Video encoding			H.264
Video input level			1~1.2Vp-p@75Ω
Video input format			PAL/NTSC
Video resolution			720x576(PAL) 720x480(NTSC)
Video white bar amplitude mV			650~720mV
Video synchronous amplitude mV			260~275mV
Video amplitude-frequency characteristic dB			0~4.8MHz		-0.5~1.5
			5.5MHz		-4.0~1.5
Audio input			Left/right channel, stereo
RS232 control interface			Standard RS232 level, 9600, 8, N, 1
RS232 data interface			Standard RS232 level, support 1200~115200
Audio Receiving
Audio Rx frequency range				470.5~479.950MHz, factory setting:479.950MHz
Audio Rx sensitivity				≤-111dBm
Audio Tx modulation				GFSK
Frequency step				150KHz
Audio decoding overall bitrate				4800bps
Audio output				2.1Vp (open circuit output)
GPS Receiving
Signal receiving				L1(1575.42MHz), C/A code
Communication protocol				NMEA0183
Sensitivity				-165dBm
Antenna				Active antenna
Data baudrate				4800bps
Data refresh rate				1Hz
Environment
Protect standard				IP66, dustproof and rainproof
Working temperature				-25°C~55°C
Storage temperature				-40°C~70°C
Appearance

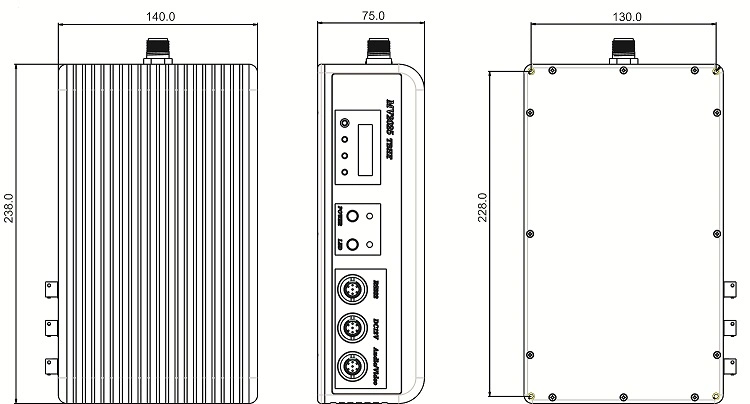

Dimension				238mm×140mm×75mm
Weight				2.5kg
