Basic Info.

Model NO.

MV2025-T/Ex-1080i

Weight

5.2kg

External Structure

Anti-Explosion Aluminum Alloy Casing, Fully-Enclos

MOQ

Transport Package

Box

Trademark

ALLTECH

Origin

China

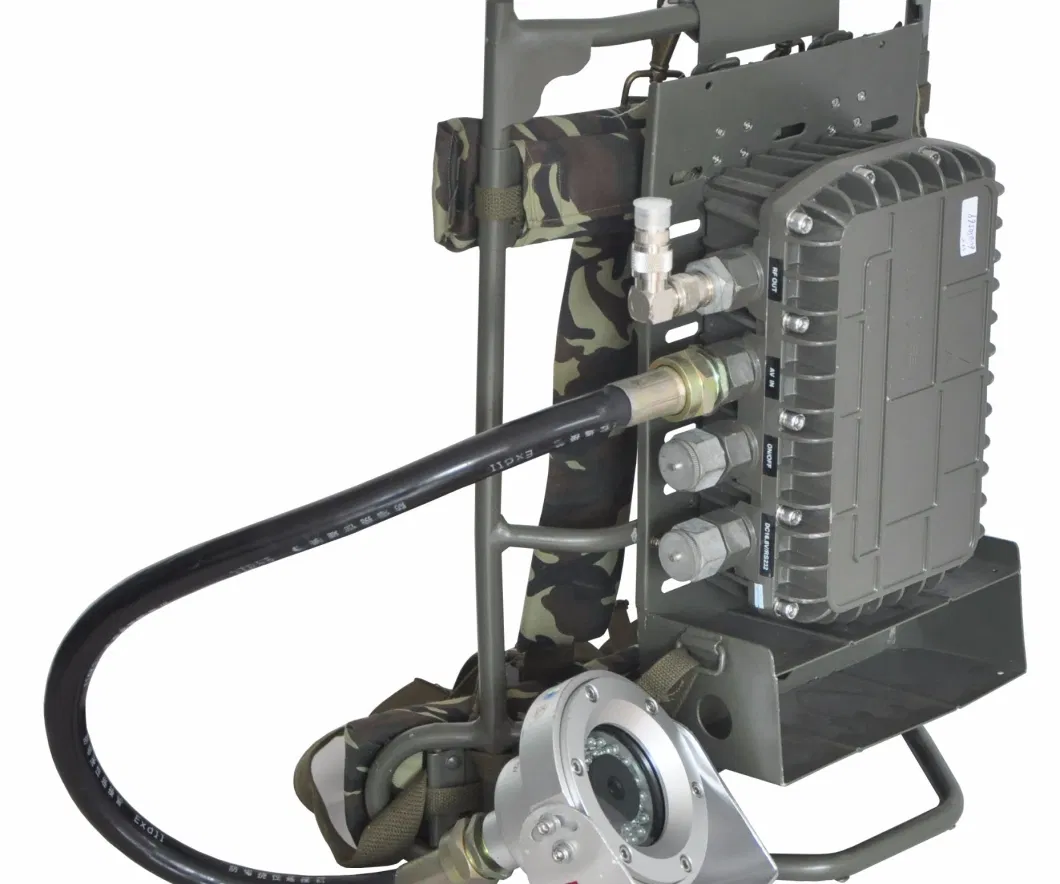

MV2025-T/Ex-1080i Manpack Anti-explosion Mobile Video Transmitter
Premium HD Multi Functional Manpack Anti-Explosion Mobile Video Transmitter

Functions & Features:

Qualified PH-G0401 anti-explosion case with national inspection; heat radiation structure for higher security; anti explosion and shakeproof design
Armed force waterproof socket with external switching power supply
NLOS (NO LINE OF SIGHT) mobile video transmission
COFDM modulation and H.264 video compression
Working frequency and RF bandwidth self-adjusted within specified range
Rechargeable lithium battery which lasts 3 hours separately if fully charged
Encrypted transmission for higher security
Component video and two-channel audio (left/right channel) simultaneously input
Video input PAL/NTSC optional (default as PAL)

Specifications:

Power Supply
Working voltage V	DC12V~DC16V
Working current A	≤2.5A@DC12.5V
Video Transmission
Working frequency range	300MHz~450MHz,560~760MHz or user customized
RF bandwidth MHz	1.5/2/4/6/7/8MHz optional
Power output	30dBm
C/N	≥28dB@30dBm
SHG	>52dBc
Encryption	AES/ALLTECH Basic scrambling
Modulation	COFDM
Video input format	PAL/NTSC
Channel bandwidth	8MHz
Video bitrate	More than 4Mbit/s (adjustable)
Audio channel	Left/right channel
Delay	Less than 1s
FEC	1/2, 2/3, 3/4, 5/6, 7/8 (optional)
GUI	1/32, 1/16, 1/8, 1/4 (optional)
Battery working	Separately 3 hours lasting if fully charged
Video Encoding
Video resolution	Minimum 720480 60i (720480 50i)
Video resolution	Maximum 1920*1080 60i self-adapted
Video encoding	H.264
Video bitrate	500kbps~16.08Mbps self-adapted
Video interface	CVBS, YCbCr
Component video format	YCbCr 4:2:0
Environment
Working temperature	-25°C~55°C
Storage temperature	-40°C~70°C
Environment humidity	No less than 95%
Appearance
Dimension	250mm×155mm×98mm
Weight	5.2kg
External structure	Anti-explosion aluminum alloy casing, fully-enclosed
Explosion-proof sign	Exd BT5
Product standard	Q/HDKWT006-2007
General assembly drawing Number	KWT-H@C 3011-000
Standard	GB3836.1-2000
Standard	GB3836.2-2000
