Basic Info

Product Description

Basic Info.

Model NO.

T460

OEM

Yes

Customization

Yes

Factory

Yes

Transport Package

Paper Carton

Specification

light weight

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

10, 000 PCS/Year.

Product Description

Wireless transmitter and receiver board Cofdm Wireless Transmission OEM Board (HDMI and HD-SDI)

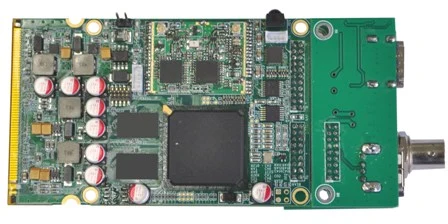

T460 Transmitter
Cofdm Wireless Transmission OEM Board (HDMI and HD-SDI)

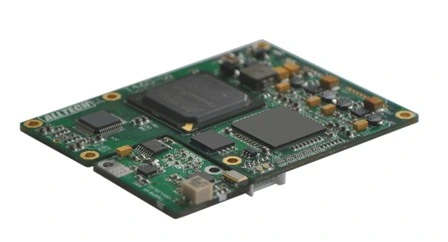

R760 Receiver

-   Full HD H.264 encoding,support D1,720P,720i,1080i,1080P
- Frequency can be customized : VHF,UHF,L and S band
-   Adjustable power output, max 200mw for the single board( without amplifier)
-   Bandwidth: Support wideband and narrowband 1.5M,2M,4M,6M,7M,8M adjustable
-   Support SD CVBS interface,HDMI/HD-SDI/YUV interface
-   Support AES encryption
- Two channel data input interface, support RS232 data one way transmission ,including user private data and GPS data

power	Working voltage	DC12V ~DC16.8V
	Working current	≤600mA@DC12V
SDIinterface	standard	SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M,
	Input amplitude	800±80mV
HDMIinterface	version	HDMI 1.1
	HDCP protocol	support
YUV interface	YPbPr	Support 576i~1080i
CVBSinterface	Video input amplitude	1~1.2Vp-p@75Ω
	Video input system	PAL/NTSC
	Video resolution	720x576(PAL) 720x480(NTSC)
	Video IOU amplitude	680~720mV
	Video sync amplitude	260~275mV
	Multiburst response	0~4.8MHz	-0.5~1.5dB
		5.5MHz	-4.0~1.5dB
Analog audio	Audio input	Left/Right, (Stereo),MIC
	Input range	0.707Vrms MAX
encoding	Video bitrates	500kbps-5100kbps
modulation	modulation	COFDM
	Constellation modulation	QPSK, 16QAM, 64QAM
	FEC	1/2, 2/3, 3/4, 5/6, 7/8
	guard intervals	1/32, 1/16, 1/8, 1/4
	carriers	2K/8K
	bandwidth	1.5, 2, 4, 6, 7, 8MHz
	encryption	AES 128 ; ABS 64/128
	Output frequency	VHF,UHF,L and S band customized
	Output power	200mW(MAX)
	Output power output range	15dB,1dB(step )
	Power output flatness	≤2dB,8MHz≤0.5dB
	C/N	≥28dB @ 20dBm
	MER	≥25dB @ 20dBm
	Carrier frequency tolerance	2*10 -6
Interface	RS232 control	Standard RS232 level, 9600, 8, N, 1
	RS232 data	StandardRS232 level, support1200~115200
outlook	dimension	715611mm(LWH)
	Weight	≤100g
