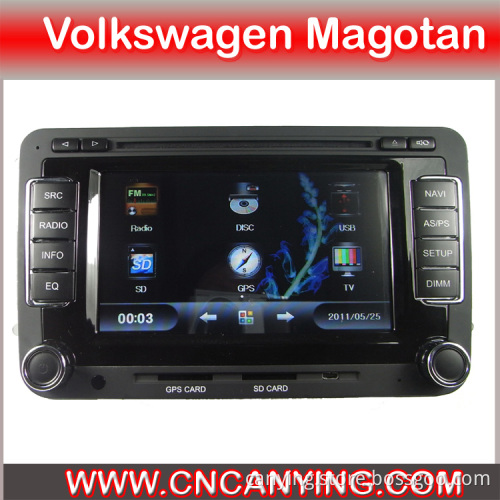

Special Car DVD Player for Volkswagen Magotan with GPS, Bluetooth. (CY-6500)

Special car DVD player for Volkswagen Magotan
PARKING AID SYSTEM OPTIONAL
GOLF6 CAN BUS OPTIONAL

ARM11 new platform avialable (with 3G. )

Dual Microphone, both in Front and in back
Dual iPod, both in Front and in back
Rear USB
Digital panel: 800*480 resolution
Same button style design with the original VW car DVD player
Supports all the buttons on the steering wheel control
DVD info displays (mode name and volume) on the small dashboard LCD
Phone book function (show name of mobile Tel No. )
Volkswagen series:
--Fits EOS, GOLF 5, GOLF 6, GTI, Jetta, Passat, Rabbit, Tiguan, Seat.
2 DIN 6.5 inch special car DVD for VW Volkswagen with bluetooth phonebook
1. 6.5" Digital panel: 800*480 resolution
2. Touch Screen with Graphic OSD display
3. SD card slots (Two SD card slots, one for GPS map, one for Multimedia)
Dual iPod connector spported on front interface and on rear
USB connector on the rear part
Dual Microphone on the front and on the rear
4. Bluetooth with phonebook function
5. Dual zone: Drive can listen to music while viewing the map
6. Compatible with DIVX/MP4/MP3/DVD/VCD/CD/CD-R/CD-RWetc
7. Built-in TV tuner (PAL/NTSC/SECAM)
8. Built-in FM/AM, 50 preset radio stations
9. One channel video input, two channel video output, Two channel audio input, three channel audio output
10.4X45W audio output
11. Back rearview function
12. OSD Language: English/Francais/Espanol/Deutsch/Italiano
13. Built-in RDS
14. USB plug in rear. (option)
The following map of countries are available now:
EU MAP: Aaustria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Andora,
Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal,
Gibralter, Channel Island, England, Ireland, Lsle of Man, Northern Ireland, Scotland
GULF AREA: Saudi Arabia, Oman, Bahrain, United Arad Emirater, Qatar, Kuwait
OTHER MAP: America, Canada, Australia, Turkey, Russia, Brazil, Argentina, Chile are available
Menu Language&Navigation Voice: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russian
GPS Features:

GPS resolution: 800*480

Band rate: 9600

COM 2
Map supported: Route66, TOMTOM, IGO8, DESTINATOR, Garmin, Finean, etc.
Operation system: Windows CE 6.0
Processor: SAM SUNG High performance processor S3C2440A-40, Max. Main frequency 400MHz.
EMS Memory: 64MB SDRAM
Storage device: 128MB NAND FLASH, Support SD Card
Display output: CVBS+S-VIDEO output. (Resolution: 480*234) or simulation RGB output.
Audio output: Stereo output of CD tone.
GPS specification: Adopt SIRF STAR III 20 channel and excessive high sensitivity GPS receiving module REB-3310, Orientation sensitivity reach-159dBm, Orientation presicion<10M, Orientation time of cold boot is
42S, Orientation time of warm boot is 35S, Orientation time of hot boot is 1S.
Power specification: Connect car power DC12V, Current<500mA: Max power
Consumption: 4.5W(12V/360mA), Normal power consumption 3W(12/250mA).

Packing:
Unit weight: 3.5 KG
Carton size: 50*37.5*38 CM, 4PCS per carton.
Carton weight: 15 KG.
