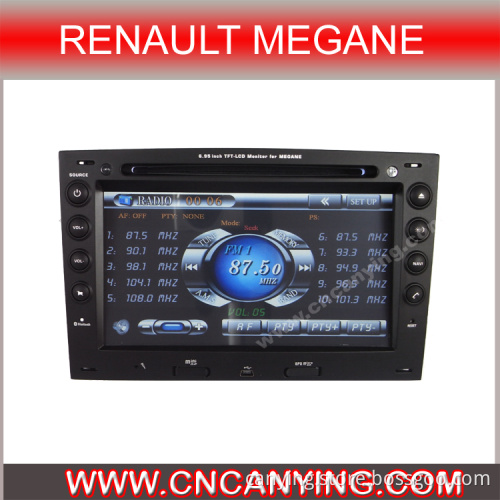

Special Car DVD Player for Renault Megane with GPS, Bluetooth (CY-6901)

Integrative Car DVD player for Renault Megane with GPS bluetooth iPod steering wheel control
ALL-IN-ONE DVD SYSTEM FOR Renault MEGANE
6.95'' Digital 800*RGB*480 TFT Monitor
Steering Wheel Control
Built-in GPS system (OS: WINCE 5.0)
Dualzone function (Listen FM/CD while watching GPS image)
Built-in Bluetooth
iPod control function
Micro SD card slot
White color illumination
Auto Dimmer(Standard/bright/soft/customer video mode)
Play DVD/ DIVX/MP4/VCD/CD/MP3
Built-in TV Receiver
DVB-T Tuner (Optional, DVB-T box [DVB-T-03], operate by Touch screen)
Built-in FM/AM Radio
Built-in 4X50W Amplifier
Super Bass output 5.1 Mode
1 AV Output(3 Zone) 1 AV Input
Car Camera input
Electronic Anti-Shock Protection
Special Function:
1. According to the original car design, without crack installation, don't cut line and only need to insert the socket into the original plug when you install.
2. To see the map on the screen and to hear a radio/CD in the background
3. Three Zone function, listening to Radio in the front and watching DVD/TV from the back Monitor at the same time
General Section:

1) Power Supply: DC12V(10.8V-15.8V)
2) Current Consumption: Less Than 10A
3) Operational Temperature Range: -20 to +85

Audio Section:
1) Rated Output: 4CH × 23W (1kHz, 1, 4Ω )
2) Maximum Power Output: 4CH× 50W
3) Rated Speaker Impedance: 4Ω
4) Pre-AMP Output Voltage: 2Vrms
5) Pre-AMP Output Impedance: <220Ω
6) AV Input/Output Section
7) Video: 1 Vp-p(75Ω )
8) Audio: 500mVrms

Monitor Section:
1) Picture Size: 6.95 inche
2) Display System: TFT LCD panel
3) Video System: PAL / NTSC
4) Brightness: 400CD/

FM Stereo Radio Section:
Frequency Range:
1) U. S. Standard: 87.9-107.9MHz
2) Outside U. S.: 87.5-108.0MHz
3) Usable Sensitivity: 5dBμ V(S/N=30dB)
4) S/N ratio: >60dB

TV Tuner Section:
1) Colour System: NTSC, PAL-B/G, PAL-I, PAL-D/K, PAL-M, PAL-N
2) Channel Selection System: PLL Frequency Synthesizer System
3) Usable Sensitivity: 41dBuV

Optional:
1) Built-in GPS and MAP (optional)
2) DVD/CD Changer.
3) Digital TV Tuner (DVB-T-03)
GPS Features:

Power specification: DC-12V
Working current: <300mA
Standby state current: 0mA
Working temperature: -20° ~+70°
Operation system: Windows CE 5.0
CPU: Intel PXA255 Processor, Max. Main frequency 400MHz.
SDRAM/FLASH: 1GB/64 MB
Time of hot boot is 19S
Orientation presicion: <15m
Refurbish frequency: 1Hz
GPS antenna frequency: 1575.52MHz
Length of antenna: 5M
Voice indication: Intellectualized voice indication function
Display output: CVBS+S-VIDEO output(Resolution: 800*480) or simulation RGB output
Audio output: Stereo output of CD tone.
Support: SD card
Resolution: 800*480
Control way: Support touch control and Remote control
