Smart Home Integrated Control System Controller

Smart home integrated control system controller
The JMDM-SH01 includes the following several parts: Smart home security systems, smart home control
System, smart home entertainment system, smart home comfort systems, smart home
Energy conservation system, smart home ecological systems, smart home appliances
System, seven intelligent household subsystem.
The smart home appliances system, mainly for home appliances to realize intelligent
Control and management. The system control throughthe Wifi connection tothe network,
Can also through 3g mobile phone card function to log into theInternet. Can control through
The mobile phone remote control operation.
1. Specific function as follows:
1.1. Self-help butler service: As long as online, you can feedback at anytime, you can
Always get feedback;
PDF created with pdfFactoryProtrial version www.pdffactory.com
JMDM-SH01 www.jingmindm.com
Shenzhen Jingmin DigitalMachine Co., Ltd.
Page 2, 2 pages
1.2. Environment in realtime detection: Built-in some sensors in detecting object space,
So you can understandthe environmental monitoring data at anytime, dust,
Formaldehyde, temperature and humidity.
1.3. Intelligent control home appliances: Through control infrared protocol converterto
Control household appliances or directly control household appliances;

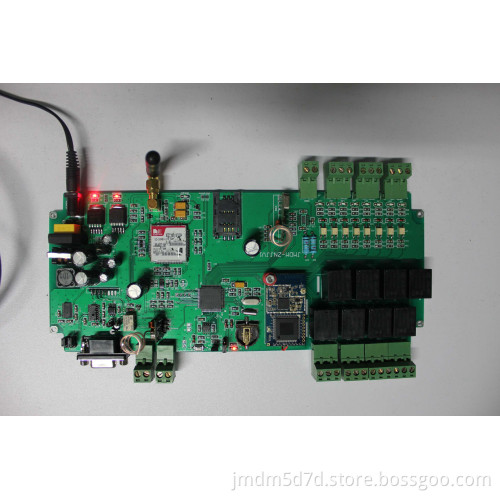

The system core contorl board adopts industrial grade ARM as the main control chip, has a
Strong anti-interference ability, powerful, stable and reliable industrial controller.
2. The control core has the following functions:
2.1. With 8 channels digital quantity input, 8 channels digital quantity output, can external
Human body induction, the infrared correlation, smoke, sensor, etc. Can
Also control remote control switch, water valve, lighting, electrical devices, etc. External
Work devices.
2.2. Integratesthe function of wireless WIFI, throughthe WIFI and remote networkto
Send and receive data, can also accept mobile phones, tablets and other terminal of the
Control.
2.3. Integrated with 433 M launch communication module. Can be controlled by 433
Wireless remote control switch and other peripherals.
2.4. Integrated with 315 M receiving communication module, can receive all kinds of data
From the remote control.
2.5. Integrated withGSM/GPRS communication module, can insert SIM card, support
GPRS network, voice callsfunction, when calling choose the speaker mode;
2.6. Integrates a channel serial port communication, can communicate with other
Peripheral equipment by serial port.
2.7. Integrated with RS485 communication all the way, can by RS485 interface
Communicate with other peripheral equipment;
2.8. Integrated intelligent alarm function.
2.9. Integratesthe function of temperature humidity acquisition.
2.10. Integrates a dc motor driver chip, maximum continuous current can be up to 2 a.
Can be used to drive the curtain motor, door motor and other peripherals.
3. After-sales services:
3.1. One year warranty: One year free warranty of the normal case of hardware
Failure, after the warranty period, just maintenance cost collected; Maitenance
Method: Maintenance freight cost should paid bythe buyer.
3.2. Free remotetechnology support: Online, phone, mail.
