High-End Electric Motion Cinema Controller

High-end electric motion cinema controller

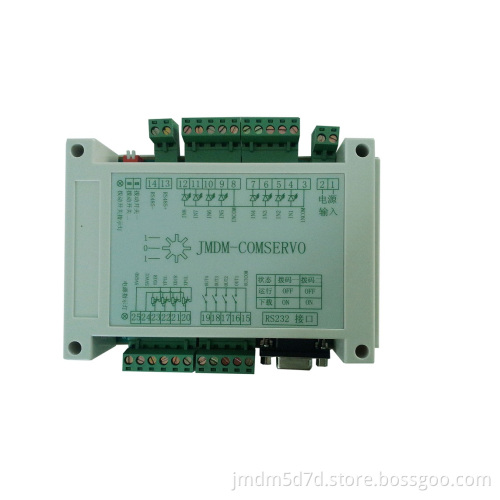

JMDM-COMSERVO /4Dcinema/3D/5D motion cinema electric platform controller
JMDM-COMSERVO:
1. As a high-end 4D controller product, it plays the key role in the control system, it makes the whole cinema equipments work cooperatively through the software of JMDM-4D editor&player owning smooth motion and precise position control performance.
2. One comservo can cotrol 2 motor driver. It can control the motion of air cylinder or hydraulic-cylinder platform with switching valves or proportional valves, 3 or 6 degree of freedom motion platform.
3. Its power supply: DC or AC 12V 2A or 24V 2A. Interface: RS232.
4. Usage: This controller is writed PWM output program, and used to control 3 or 6 proportional valves precise movements, 8 chair effects's on and off by mounting under each motion platform at your cinema.

COMSERVO Protocol Document
1. Communication setting
Serial port communication
Baud rate 9600
Date bits 8
Stop bits 1
Parity check Non
2. Communication protocol
Serial port to send character string format as "OM(01, 060)", "01" means cylinder 1(" 01 "is a character string), " 060 " means the cylinder by stretch length of 60 mm (" 060" is a character string). The user can change according to the actual situation.
For example:
OM(01, 000) cylinder 1reset
OM(02, 000) cylinder 2 reset
OM(03, 000) cylinder 3 reset
OM(04, 000) cylinder 4 reset
OM(05, 000) cylinder 5 reset
OM(06, 000) cylinder 6 reset
OM(01, 020) cylinder 1extension 20mm
OM(01, 060) cylinder 1extension 60mm
OM(01, 100) cylinder 1extension 100mm
Cylinder 2, cylinder 3, cylinder 4, cylinder 5, cylinder 6in a similar way;
3. Speed setting protocol as below:
OM(31, 000) Axis 1 speed
OM(32, 000) Axis 2 speed
OM(33, 000) Axis 3 speed
OM(34, 000) Axis 4 speed
OM(35, 000) Axis 5 speed
OM(36, 000) Axis 6 speed
Speed 000~255
