GSM Wireless Controller, Intelligent Home Wireless Controller, Wireless Controller, SMS Controller

GSM wireless controller, intelligent home wireless controller, wireless controller, SMS controller
1. Introduction:
1.1. Support GSM SMS control, computer serial port control, independent control of intelligent multi-function industrial I/O controller with high reliability, for short as 32 channel SMS controller, GSM controller, SMS controllers, wireless I/O controller, GSM remote control module, etc.
1.2. Can be an external 16 channels photoelectric switch, infrared detector, inching switch, all kinds of sensors, external 16 channels AC/DC load, used for 16 channels input and 16 channels output I/O control, switch control occasions
1.3. There are three worksings: Independent control, PC serial port control, SMS control, which can realize the following functions:
1.3. 1. Available SMS control, computer serial port and single-chip microcomputer program logic independent control 16 channelsrelay switch, 16 channels digital quantity input status acquisition.
1.3. 2. SMS alarm, mobile phone remote control, unattended operation base stations or machine room SMS monitoring system, SMS household anti-theft, intelligent home control.
1.3. 3. Can help customer programming, used for mobile phones remote control 16 channels input 16 channels output of switch quantity control occasions.
1.3. 4. Our company provides a free backup SMS photoelectric isolation controller PC software control 16 channels digital quantity input, output, (but won't provide the source code), the client can be used directly, don't need understand professional programming language, you can easily implement intelligent home control, remote I/O control.
2. Performance parameter
1. Working power supply: DC 24V (12V need customize);
2. Main control chip: 8 bits high-performance MCU + logic gate chip + GSM wireless module;
3. Program memory: 32K program memory, is used to store data.
4. Input: 16 channels digital quantity input, low level input is valid, can connect all kinds of NPN photoelectric switch or photoelectric sensors, infrared detector, inching switch and so on.
5. Output: 16 channels relay output, every channel can achieve maximum 10A current, output state can be read back.
6. System stability: Adopt photoelectric isolation and enable internal watchdog and strict high frequency filter characteristics, make the system work stable and reliable.
7. Interface: 1 channel standard RS232 serial communication interface (15KV static shock resistance), can be directly communicate with peripherals like computer or PLC control; Can download the program directly by RS232 interface, without CD-R machine, convenient program modification and upgrade;
8. Working status indicators: 1 power indicator light, 1 network indicator, 1 module starting up indicator.

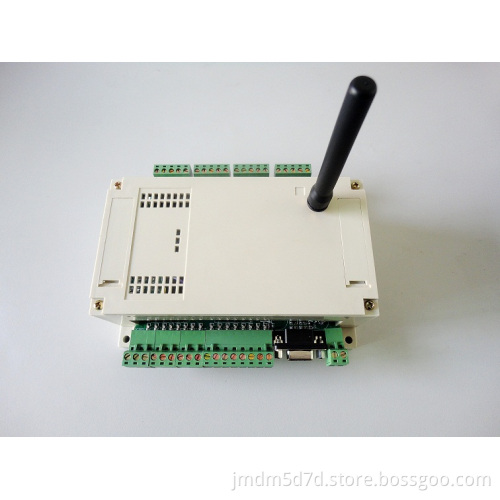

9. Shell installation size: 154mm*126mm*60mm; Available guide installed or installed with screws.
