GSM Control Module, 2 Channels GSM Controller, SMS Controller

GSM control module, 2 channels GSM controller, SMS controller
1. Introduction:
Support GSM, SMS control, independent control of intelligent industrial grade 2 channels I/O control device, for short 2 channels GSM controller, SMS controller, GSM remote control module, etc. SMS control, which can realize the following functions:
1)The controller by to text messages inside the corresponding mobile phone send text messages to control the two-way relay switch.
2)SMS alarm, mobile phone remote control, unattended operation base stations or machine room SMS monitoring system, intelligent home control.
3)Can help customer programming, for mobile phone remote control 2 output switch quantity control occasions.
2. Performance parameter
1)Working power supply: AC 100-220V;
2)Main control chip: 8 bits high-performance MCU + logic gate chip + GSM wireless module;
3)Program memory: 32K program memory, is used for store data.
4)Output: 2 channels relay output, each channel maximum current can reach 20A, output state can be read back.
5)System stability: Adopt photoelectric isolation and enable internal watchdog and strict high frequency filter characteristics, make the system work stable and reliable.
6)Working status indicators: 1 power light, 1 running lights, 1 network indicator, 1 module starting up indicator.
3. Product feature
1)Remote control 2 channles relay switch: Through external cell phone send messages, can be remote control 2 channel relay switch anytime and anywhere;
2)SMS receiving and sending functions: Controller after receiving outside a cell phone to send SMS commands, can control results by text message sent to the phone again.
3)Networking indicator, which can real-time denote state of GSM network.
4)Each relay can open and close through the texts in both Chinese and English, both in English and Chinese texts by software by custom, otherwise, according to the factory Settings of the command control.
5) channels output with inching function, actuation after a certain time, automatically shutdown, and this time can be set, the factory is not set delay time, all is switch the state output.
6) channels output with power down memory function, after shutdown and power on again, relay maintain the previous state.
7)Through GSM2DO PC software set authorization number phone, only authorized mobile phones can to control the relay.
8)Above related function must be set up by the upper machine, othervise instructions is according to factory settings, the state of the output is the output of the switch state.
GSM2DO PC instructions for details, please consult GSM2DO superordination machine instructions.

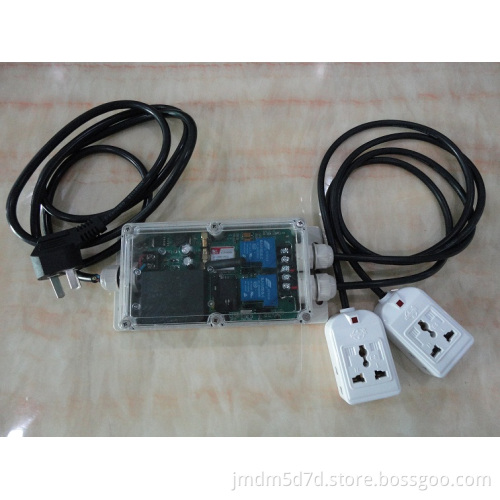

9)Can choose the output mode according to the customer request, direct connect AC load or use switch.
4. Usage:
1)Install the SIM card
Empty the SIM card information first, and then open the controller shell, put the SIM card into the booth, finally put the shell on, and the hardware installation is complete.
2)Electric test
After install motherboard is complete, can be electrical test, power supply is AC 100-220V. Motherboard after electricity, power indicator on the main board normally on, shows that main power supply is normal, can work normally.
3)Networking test
Motherboard after electricity, after about 20S, see operating instructions in the flicker, the network light flashing status is 1S on 3 seconds off, means the wireless module has registered into work, can be controlled by text message.
4)PC software and basic function
First connect the serial port, the controller power supply connect well, open the PC software can start Settings.
(1)can set 2 channels output of the command, content within 8 bytes (only in English and Chinese).
(2) can be set for each path of the output mode, the separated state of output and opened the automatic delay two modes, the user can according to their own specific circumstances set;
