8d Interactive Racing & Flight Similator, 5D Cinema

Get Latest Price

Payment Type:: T/T, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union, Paypal

Product Description

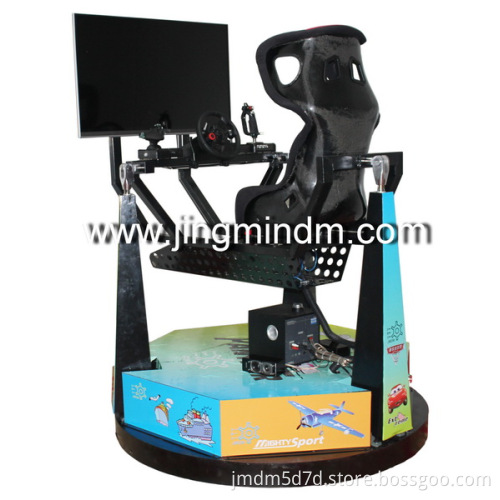

8D Interactive Racing & Flight Simulator , 5D Cinema

Feature: 1)Used to see 5D movies
2)Used to play racing game
3) Used to play flight game
4)Support all raing game and flight game, no need to edit the motion file for the games, no need to worry about the qty of games, the game can be download from network directly.
5)Support multi machine connect together, players can play the same game together, after the game finished, there is rank
6) Install the multi coin machine, run automatic, save labor cost
7)Have strong attraction , Low investment, High profit
8)Two versions: Luxury electric version, Economic pneumatic version

JMDM-GFAIO is a brand-new, highly simulated and super interactive 360 degree rotation driving simulator newly launched by our company, is also called game and film all in one.
It consists of 360 degree rotation and super interactive dynamic platform, 47inch LCD TV, high-definition 3D game, and stereo surround sound. Audience not only can play the air combat, car racing,
Speedboat dynamic interactive games, but also can see stereoscopic
Dynamic movies wearing 3D glasses. It has super difficult and exciting
Actions and interactive plot that ordinary 3 degrees of freedom, 6 degree of freedom Motion Theater hard to realize. It applies to top leisure clubs, KTV, game hall, large scale movie theater, home theater,
All kinds of entertainment places, theme parks,
Playground and the popular science exhibition hall, etc.

It can simulate real U-turns and breathtaking actions, high-speed dive, climbout, tilt, fall, bumps like high difficult, high speed, thrilling and exciting actions, bring you the super shock and stimulation, the real driving feeling allowing you feel as if be personally on the scene, fully immersive, drive a Ferrari, off-road racing cars, top speedboat, a
Private aircraft, and enjoy the feeling of luxury, surpassing yourself, high speed, pass through time and space and something like difficult to experience the super thrilling but very safe entertainment feeling in your ordinary even lifelong life!

B. Technical parameters
1. Electric cylinder parameters
220V AC servo motor (parameters see no. 2)
Aluminium forging alloy shell
High alloy steel expansion link
Max thrust: 200kg
Stroke: 600mm
Operating temperature: -5-60 degree
Max speed: 200mm/s
Screw lead: 5mm
2. AC servo motor parameters
Power: 1.0Kw
Voltage: 220V(380 need to customization)
Rated torque: 3.3Nm
Rated speed: 3000rpm
Rated current: 4.2A
Max torque: 9.9Nm
Max current: 12.6A
Composition: The rotation of the platform driven by an ac servo motor synchronous wheel, platform go up and down by three electric cylinders driven three AC servo motors

3. Platform parameters

Install space requirement: Length, width and height: 4x4x3.2m
Size: L*W*H: 1.8x1.6x2.2m
Runtime max current: 5A

4. Platform component
A. 360 degrees rotation chassis (1 axle)
B. 3 straight blade electric cylinders (3 axles)
C. One seat
D. One 47'' LCD Television
E. One joystick
F. Mode of motion: 3DOF
