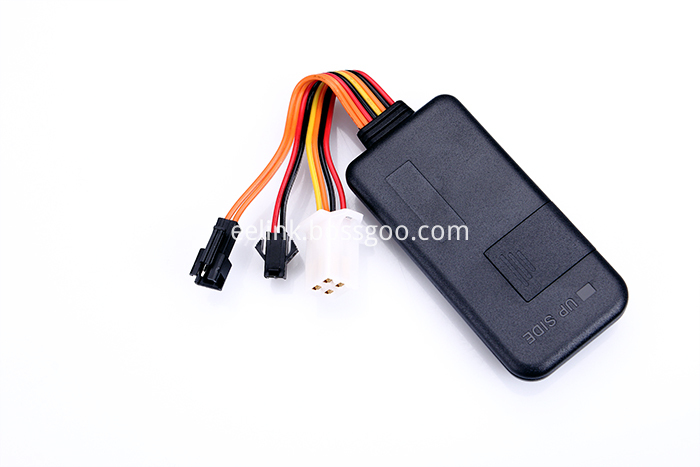

GPS/LBS Vehicle Tracking System

TK116 is a GPS/LBS Vehicle Tracking System, if you are looking for a GPS/LBS Vehicle Tracking System, Best Vehicle Tracking System, Car GPS Tracking System, Best Vehicle Tracking Device, TK116 is your best choice, it representive product of EELINK COMMUNICATION. If you are finding GPS/LBS Vehicle Tracking System, Best Vehicle Tracking System, Vehicle Tracking Devices, Best Vehicle Tracking Device, TK116 is your best choice .  With an annual million units sold in North America , Europe and Southeast Asia. it's a Multifunctional Vehicle GPS Tracker with very smart size ,TK116 GPS Tracker has a very wide range of industrial and commercial applications, small and powerful,wide voltage 6-36V , cutting oil ,listening, SOS, can be trackered on the platfrom through computer & smart phone.
Typical application areas : logistics enterprises, fleet management, bus management, insurance , power , oil , telecommunications , taxi , car sales , car rental , vehicle maintenance , technology researchers.

PRODUCT FEATURES:

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Wide Input Voltage:6-36V DC.
■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
■ Keelin Tracking Service Platform, Keelin APP Client, SMS query
■ Built-in battery, Power disconnect alarm & Low battery alarm.
■ Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
■ Supports ACC status checking and vehicle status notifying.
■ Relay to remotely control the vehicle..
■ SOS button for SOS call.
■ MIC to remotely monitor.
■ Multiple protocol support, can be integrated to platform of customers
■ OTA upgrade firmware.

PLATFORM/APP:
■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ SOS Alarm (Need SOS Cable)
■ Listen (Need Microphone)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm
■ Low Battery Alarm

FUNCTION EXTENSION:
■ 1. Default interface: Microphone input port for remote monitoring
■ 2. Can be extended: ADC input port , used for temperature and oil detection
■ 3. Can be extended: External lithium battery port ,used for High capacity battery
■ 4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application

Hardware Specification
Communication System	GPRS/GSM
Frequency	GSM 850/900/1800/1900MHz
Networks	GPRS
Output Power	Class 4 (33dBm ±2dB) for GSM 850/900MHz
	Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Receive Sensitivity	-106dBm/GSM 900MHz,GSM 1800MHz
GPS
GPS Chip	MTK high sensitivity GPS chip
Frequency	L1,1575.42MHz C/A code
Channels	66
Location Accuracy	<10 meters
Tracking Sensitivity	- 165dBm
Acquisition Sensitivity	- 148dBm
Location time	Hot start:≤2sec(open sky)
	Cold start:≤35sec(open sky)
Main Specifications
Monitoring Scope	≤ 5M
Antenna	Built-in GPS ceramic antenna; GSM quad-ban antenna
LED Indicator	GPS(blue), GSM(green), Power(red)
Operating Voltage	9-36VDC
Operating Temperature	-20℃~70℃
Operating Humidity	5%~95%,non-dense
Built-in Battery	450mAh/3.7Vindustrial lithium polymer battery
Standby	4 hours
Dimension	87(L) ×41.6 (W) ×12 (H) mm
Weight	45g

Platform

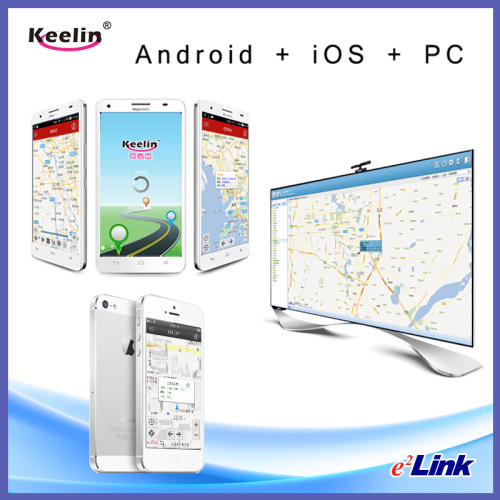

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience

Accessories (Optional)

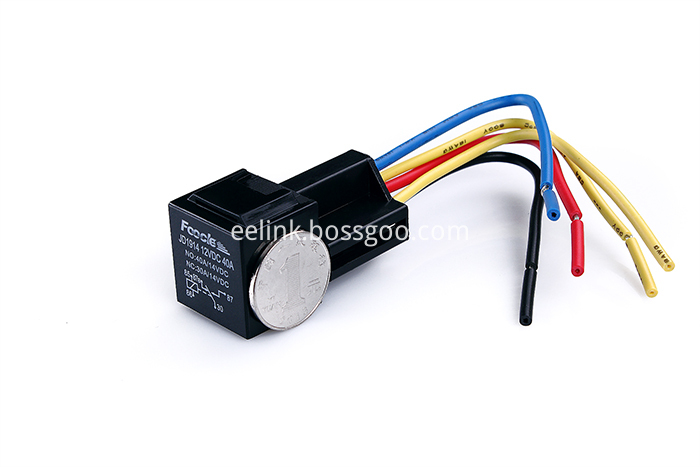

Relay/ Microphone/SOS cable

Ⅴ. Installation

5.1 Before Installation
5.1.1 Open the packing case, then check if the terminal is Ok and the accessories are intact, or please contact your dealer;
5.1.2 Choosing a SIM card: You need a suitable SIM card for using the terminal, please contact your dealer if you have any question;
5.1.3 Install the SIM card: First use your thumb to press the SIM card cover, then push it outside to pull down the SIM card cover. Now you can insert your SIM card to the SIM card connector until you cannot move the card inside anymore.
5.1.4 Uninstall the SIM card:Lift up the edge of the SIM card, next pull it out.

Delivery

*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.

Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
