Vehicle GPS Tracking Device Solutions

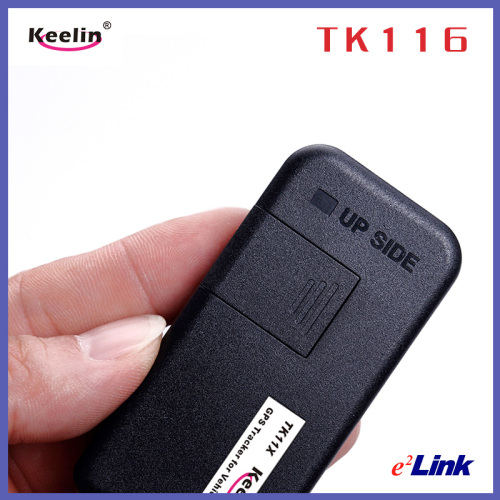

TK116 is an complete Vehicle GPS Tracking Device Solutions, t's a Multifunctional Vehicle GPS Tracker with very smart size ,TK116 GPS Tracker has a very wide range of industrial and commercial applications, small and powerful,wide voltage 6-36V , cutting oil ,listening, SOS, can be trackered on the platfrom through computer & smart phone.
Typical application areas : logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental, vehicle maintenance, technology researchers.

If you are finding a Vehicle GPS Tracking Device Solutions, Live GPS Tracker for Car, Real Time GPS Vehicle Tracking, Best GPS Tracking Device for Cars, TK116 is your best choice .

PRODUCT FEATURES:

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Wide Input Voltage:6-36V DC.
■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
■ Keelin Tracking Service Platform, Keelin APP Client, SMS query
■ Built-in battery, Power disconnect alarm & Low battery alarm.
■ Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
■ Supports ACC status checking and vehicle status notifying.
■ Relay to remotely control the vehicle..
■ SOS button for SOS call.
■ MIC to remotely monitor.
■ Multiple protocol support, can be integrated to platform of customers
■ OTA upgrade firmware.

PLATFORM/APP:
■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ SOS Alarm (Need SOS Cable)
■ Listen (Need Microphone)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm
■ Low Battery Alarm

FUNCTION EXTENSION:
■ 1. Default interface: Microphone input port for remote monitoring
■ 2. Can be extended: ADC input port , used for temperature and oil detection
■ 3. Can be extended: External lithium battery port ,used for High capacity battery
■ 4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application

Hardware Specification
Communication System	GPRS/GSM
Frequency	GSM 850/900/1800/1900MHz
Networks	GPRS
Output Power	Class 4 (33dBm ±2dB) for GSM 850/900MHz
	Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Receive Sensitivity	-106dBm/GSM 900MHz,GSM 1800MHz
GPS
GPS Chip	MTK high sensitivity GPS chip
Frequency	L1,1575.42MHz C/A code
Channels	66
Location Accuracy	<10 meters
Tracking Sensitivity	- 165dBm
Acquisition Sensitivity	- 148dBm
Location time	Hot start:≤2sec(open sky)
	Cold start:≤35sec(open sky)
Main Specifications
Monitoring Scope	≤ 5M
Antenna	Built-in GPS ceramic antenna; GSM quad-ban antenna
LED Indicator	GPS(blue), GSM(green), Power(red)
Operating Voltage	9-36VDC
Operating Temperature	-20℃~70℃
Operating Humidity	5%~95%,non-dense
Built-in Battery	450mAh/3.7Vindustrial lithium polymer battery
Standby	4 hours
Dimension	87(L) ×41.6 (W) ×12 (H) mm
Weight	45g

Platform

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience

Accessories (Optional)
Relay/ Microphone/SOS cable

Ⅺ. Warranty rules
11.1 Special statement
1)Technology change, without notice.
2) If the color and appearance are inconsistent with those for the actual product, the latter will prevail.
3)Warranty card is only valid for the terminals with the following IMEI.
4)Please take care of the warranty card and show it with the original purchase receipts when enjoying the warranty service.

11.2 Warranty period
Since the date of purchase, passive waste host has one year warranty.
11.3 After sales
Any of the following circumstances not covered by the warranty, but may be appropriate to pay repair:
1)More than the warranty period.
2)Unauthorized removal or repair damaged.
3)Damage caused by improper installation, use, maintenance, custody.
4)The IMEI label is torn or Obscure.
5)Warranty certificate and product models do not match or warranty certificate be altered.
6)Damage caused by force majeure.
