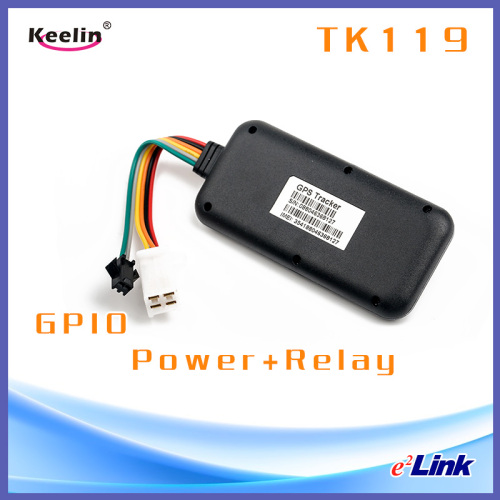

GPS Tracker for Car with GPIO Customization

TK119 PRODUCT FEATURES:

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Super Wide Input Voltage:9-72V DC.
■ Support GPS / Beidou / Glonass precise positioning system, support A-GPS
■ GPS data uploaded by GPRS regularly, Web browser platform, Smart phone app platform and SMS query.
■ Supports ACC status checking and vehicle status notifying.
■ Built-in battery, Power disconnect alarm & Low battery alarm.
■ Built-in G-sensor ,Vibration, collision and falling alarm.
■ GEO-fence alarm, speed & shift alarm.
■ Use relay to remotely cut the oil
■ Extend I/O port to add extension function
■ Multiple protocol support, can be integrated to platform of customers
■ OTA upgrade firmware.
■ Water proof level IP67

TK119 GPS/BEIDOU/GLONASS Tracker has a very wide range of industrial and commercial applications, small and powerful, wide voltage 7-72V, cutting oil, can be trackered on the platfrom through computer & smart phone.
Typical application areas : logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental, vehicle maintenance, technology researchers.

If you are finding GPS Tracker for Car with GPIO Customization, Mini Global GPS Tracker, Multifunctional Car Monitor, Vehicle Location Tracker, TK119 is your best choice.

MODLE TYPE:

■ TK119 : GPS
■ TK119-BD :GPS + BEIDOU
■ TK119-GN :GPS + GLONASS

PRODUCT PICTURE:

Note:
●Please cut off the power before installing or uninstalling the SIM card.
●The SIM card should have GPRS function, opening GPRS function for the SIM card is a must.
●SIM card should open Caller Identification function  for telephone querying.
●If you enable the PIN code of the SIM card, please use your mobile phone to disable the PIN code.
●Please make sure that the SIM card has sufficient balance.
4.1 Install the terminal
4.1.1 Please install the terminal concealed by professional person
Please make sure to install the terminal with this side upward, and use wide strong double-sided adhesive sponge to fix it.
Please make sure to install the terminal with this side towards the ground, and use wide strong double-sided adhesive sponge to fix it.
4.1.2 Installation Notice
●Hide the terminal properly inside the car body in order to avoid damages.
●Keep the terminal away from RF emission sources such as backing radar, car burglar alarm and other vehicle mounted communication devices.
●Suggest to use wide strong double-sided adhesive sponge to fix it, or use cable ties and other liable methods to fix it.
●Device Built-in GSM antenna and GPS antenna, Please ensure that signal receiving side is facing up(towards the sky) when doing installation, without any metal material covered on the top.It may weaken signal and results in not work properly
The recommended installation location:
1)The hiding place below the front windshield trim panel;
2)The hiding place around the front dash(if the surface is not made of metal);
3)The place under the rear windshield;

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.

Platform website: www.keelin.com.cn, choose language at the right side and click demo button to experience

PLATFORM/APP:

■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm
■ Low Battery Alarm

Voltage	12/ 24/ 36 /48 /72  VDC
Work Current	<30mA@12V
Standby Current	<10mA@12V
GPS Accuracy	5-15m (Depend GPS signal)
LBS  Accuracy	About 200 m  (Depending on density of base stations)
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
WCDMA Frequency	W850/W1900/W2100MHz
Hot/warm/cold Start	<3s,<15s,<60s
Battery Capacity	90mAh
Dimensions (mm)	87(L)X41.6(W)X 12(H)
Work Temperature	-20℃~70℃
Work Humidity	20%~80%RH
Weight	50 g
IP Level	IP67

Accessories

Power Cable  /  Relay (Optional)

Installation

Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.

Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
