9-72V DC High Voltage GPS Tracker for Car

A powerful GPS tracking device, 7-72 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor.

If you are finding 9-72V DC High Voltage GPS Tracker for Car, Best Fitness Tracker Waterproof, Waterproof Gps Tracking Device, Waterproof Gps Tracker, TK119 is your best choice.

TK119 GPS/BEIDOU/GLONASS Tracker has a very wide range of industrial and commercial applications, small and powerful, wide voltage 7-72V, cutting oil, can be trackered on the platfrom through computer & smart phone.
Typical application areas : logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental, vehicle maintenance, technology researchers.

PRODUCT FEATURES:

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Super Wide Input Voltage:9-72V DC.
■ Support GPS / Beidou / Glonass precise positioning system, support A-GPS
■ GPS data uploaded by GPRS regularly, Web browser platform, Smart phone app platform and SMS query.
■ Supports ACC status checking and vehicle status notifying.
■ Built-in battery, Power disconnect alarm & Low battery alarm.
■ Built-in G-sensor ,Vibration, collision and falling alarm.
■ GEO-fence alarm, speed & shift alarm.
■ Use relay to remotely cut the oil
■ Extend I/O port to add extension function
■ Multiple protocol support, can be integrated to platform of customers
■ OTA upgrade firmware.
■ Water proof level IP67

MODLE TYPE:
■ TK119 : GPS
■ TK119-BD :GPS + BEIDOU
■ TK119-GN :GPS + GLONASS

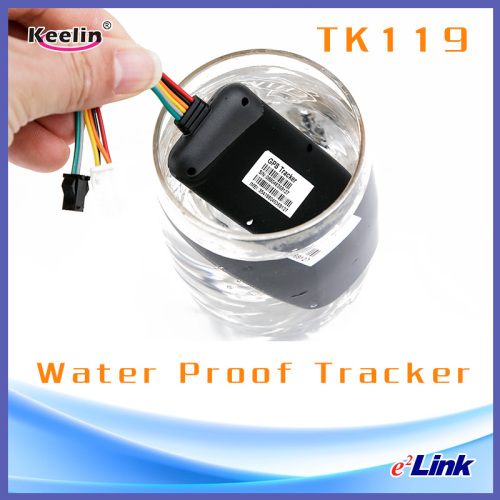

PRODUCT PICTURE:

5.1 Power on
Power on: insert a valid SIM card and wire all the cables, then the terminal power on itself.
5.2 LED Indicators
The red LED flickers fast when the terminal is searching for GSM network, it flickers intermittently when the terminal has registered the GSM network successfully.
The blue LED flickers fast when the terminal is searching for the GPS satellite signal, it flickers intermittently when the terminal when the terminal has searched the satellites and can be positioned.

Red LED/GSM
Blue LED/GPS

1. Red LED(indicates GSM working state)Fast blinking Searching for GSM network; Slow blinking GSM/GPRS works normally
2. Blue LED(indicates GPS signal state)Fast blinking Searching GPS Satellites; Slow blinking GPS works normally
5.3 Power off
Disconnect the external power and take off SIM card, after a while the terminal will shut down.

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.

Platform website: www.keelin.com.cn, choose language at the right side and click demo button to experience

PLATFORM/APP:

■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm
■ Low Battery Alarm

Voltage	12/ 24/ 36 /48 /72  VDC
Work Current	<30mA@12V
Standby Current	<10mA@12V
GPS Accuracy	5-15m (Depend GPS signal)
LBS  Accuracy	About 200 m  (Depending on density of base stations)
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
WCDMA Frequency	W850/W1900/W2100MHz
Hot/warm/cold Start	<3s,<15s,<60s
Battery Capacity	90mAh
Dimensions (mm)	87(L)X41.6(W)X 12(H)
Work Temperature	-20℃~70℃
Work Humidity	20%~80%RH
Weight	50 g
IP Level	IP67

Accessories

Power Cable  /  Relay (Optional)

Installation

Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.

Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.

Customization
Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements...
Case one
We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
Case two
We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
Case Three
Special Customization GPS Tracker for North American customer. We've got FCC, PTCRB Certificate and the defective rate is less than 0.1%. Sales volume has reached one million till now.
Case Four

Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.
