6-36V GPS Tracker for Car

Welcome to use our terminal,please read this manual carefully to install and operate the terminal exactly. This user manual is for reference only. If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail.

Using TK116 GPS tracker, we can position.monitor and control the vehicle on the position server via GPRS.GPS and Internet. It can help customers to manage transparently.reduce cost.maintain security and raise efficiency.  Now it is widely used in business traffic.logistics distribution.automobile lease.intelligent transportation.shipping market.army and police.rescuing.Safety Supervision .Intelligent city-

If you are finding a 6-36V GPS Tracker for Car, Hidden GPS Tracker for Live, Small GPS Tracker for Car, Vehicle Monitoring System, TK116 is your best choice.

PRODUCT FEATURES:

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Wide Input Voltage:6-36V DC.
■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
■ Keelin Tracking Service Platform, Keelin APP Client, SMS query
■ Built-in battery, Power disconnect alarm & Low battery alarm.
■ Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
■ Supports ACC status checking and vehicle status notifying.
■ Relay to remotely control the vehicle..
■ SOS button for SOS call.
■ MIC to remotely monitor.
■ Multiple protocol support, can be integrated to platform of customers
■ OTA upgrade firmware.

PLATFORM/APP:
■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ SOS Alarm (Need SOS Cable)
■ Listen (Need Microphone)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm
■ Low Battery Alarm

FUNCTION EXTENSION:
■ 1. Default interface: Microphone input port for remote monitoring
■ 2. Can be extended: ADC input port , used for temperature and oil detection
■ 3. Can be extended: External lithium battery port ,used for long battery life
■ 4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application

Hardware Specification
Communication System	WCDMA/GSM
Frequency	GSM 850/900/1800/1900MHz
Networks	GPRS
Output Power	Class 4 (33dBm ±2dB) for GSM 850/900MHz
	Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Receive Sensitivity	-106dBm/GSM 900MHz,GSM 1800MHz
GPS
GPS Chip	MTK high sensitivity GPS chip
Frequency	L1,1575.42MHz C/A code
Channels	66
Location Accuracy	<10 meters
Tracking Sensitivity	- 165dBm
Acquisition Sensitivity	- 148dBm
Location time	Hot start:≤2sec(open sky)
	Cold start:≤35sec(open sky)
Main Specifications
Monitoring Scope	≤ 5M
Antenna	Built-in GPS ceramic antenna; GSM quad-ban antenna
LED Indicator	GPS(blue), GSM(green), Power(red)
Operating Voltage	9-36VDC
Operating Temperature	-20℃~70℃
Operating Humidity	5%~95%,non-dense
Built-in Battery	450mAh/3.7Vindustrial lithium polymer battery
Standby	4 hours
Dimension	87(L) ×41.6 (W) ×12 (H) mm
Weight	45g

Platform

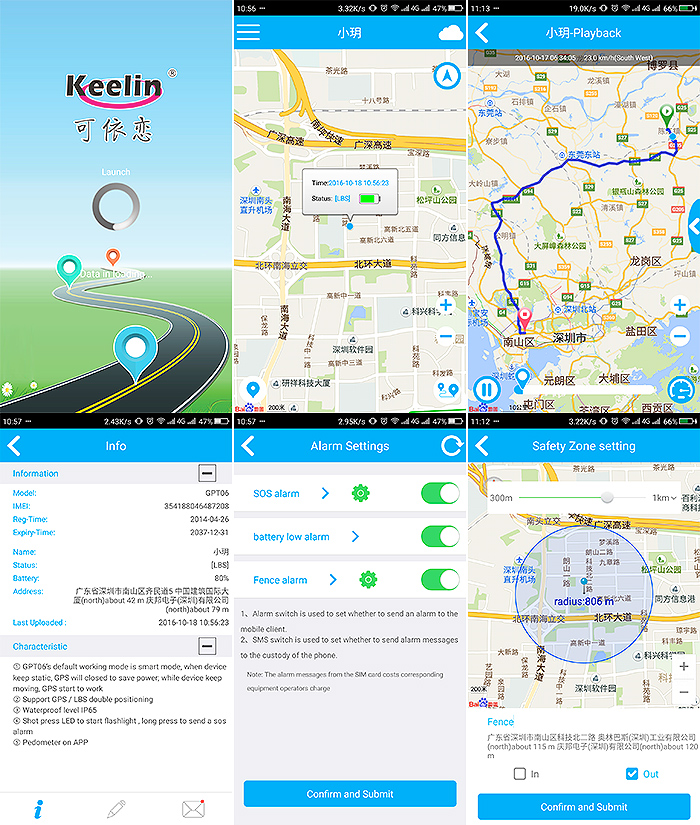

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience

Accessories (Optional)
Relay/ Microphone/SOS cable

Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.

Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.

Customization
Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements...
Case one
We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
Case two
We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
Case Three
Special Customization GPS Tracker for North American customer. We've got FCC, PTCRB Certificate and the defective rate is less than 0.1%. Sales volume has reached one million till now.
Case Four
Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.
