Li-ion Rechargeable Battery, 26650-3200mAh Battery for Electric Scooter, High-Rate Discharge E Cigarette Battery, Battery Pack, Li Ion Battery

Get Latest Price

Payment Type:: T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

Our products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, walkmans, wireless microphones, medical equipment and other electronic products.

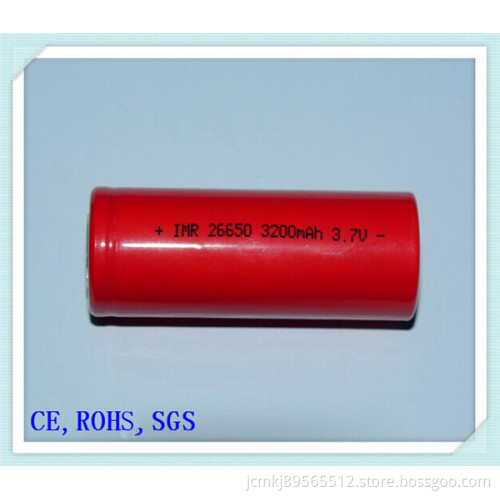

IMR 26650-3200mAh,3.7V 15C high-rate discharge

                           The discharge curve of different ratio
Voltage
(v)

                                                  Discharge time (min)

Specifications:
1. Capacity:
Nominal: 3200mAh
Min.: 3200mAh

2. Dimensions:
Diameter: 26+/-0.2mm
Height: 65+/-0.2mm

3. Features:
1) Lithium ion 26650 cylindrical rechargeable battery
2) 3.7V 3200mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time

Li-ion Rechargeable Battery, 26650-3200mAh Battery for Electric Scooter, High-Rate Discharge E Cigarette Battery, Battery Pack, Li Ion Battery

NO.	Item	Specifications
4.1	Typical Capacity	3200mAh @ 0.2C Discharge
4.1	Minimum capacity	3200mAh @ 0.2C Discharge
4.2	Nominal voltage	3.7V
4.3	Standard Charge	CC/CV,0.2C5A, 4.20V
4.4	Standard Discharge	CC,0.2C5A, 3.00V
4.5	End-of-charge Voltage	4.20V±0.05V
4.6	End-of-charge Current	0.01C5A (At CV mode)
4.7	End-of-discharge Voltage	3.0V
4.8	Charging Time	8.0hours(standard charge)
4.9	Quick Charge Current	3200mA(1.0C 5rate)
4.10	Quick Discharge Current	3200mA(1.0C 5rate)
4.11	Max Discharge Current	48000mA (15.0C )
4.12	Initial Impedance	Max:15mΩ
4.13	Weight	Approx:69±3g
4.14	Operating temperature	Charging: 0~45°C Discharging:-20~60°C
4.15	Storage temperature	-5~35°C
4.16	Storage Humidity	≤75% RH
4.17	Appearance	Without scratch, distortion, contamination and leakage
4.18	Standard environmental condition	Temperature :23±5°C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
