Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

Our products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, walkmans, wireless microphones, medical equipment and other electronic products.

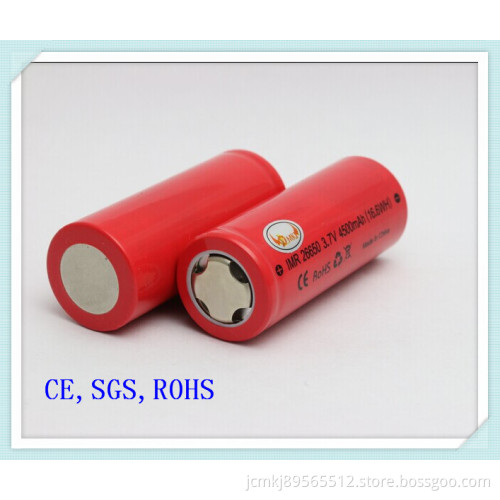

Li-ion Rechargeable Battery 26650-4500mAh

The discharge curve of different ratio
Voltage
(v)

Discharge time (min)

Specifications:
1. Capacity:
Nominal: 4500mAh
Min.: 4500mAh

2. Dimensions:
Diameter: 26+/-0.2mm
Height: 65+/-0.2mm

3. Features:
1) Lithium ion 26650 cylindrical rechargeable battery
2) 3.7V 4500mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time

With complete varieties and various combination modes, the battery products of the company can be designed and processed according to the requirements of customers.
Its products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, wireless microphones, medical equipment and other electronic products.

Li-ion Rechargeable Battery 26650-4500mAh, High Rate Discharge, Power Bank, E-Cigarette Battery, Audio Battery, Lithium 26650 Battery, Li Ion Battery

NO.	Item	Specifications
4.1	Typical Capacity	4500mAh @ 0.2C Discharge
4.1	Minimum capacity	4500mAh @ 0.2C Discharge
4.2	Nominal voltage	3.7V
4.3	Standard Charge	CC/CV,0.2C5A, 4.20V
4.4	Standard Discharge	CC,0.2C5A, 3.00V
4.5	End-of-charge Voltage	4.20V±0.05V
4.6	End-of-charge Current	0.01C5A (At CV mode)
4.7	End-of-discharge Voltage	3.0V
4.8	Charging Time	8.0hours(standard charge)
4.9	Quick Charge Current	4500mA(1.0C rate)
4.10	Quick Discharge Current	4500mA(1.0C rate)
4.11	Max Discharge Current	13500mA (3.0C rate)
4.12	Initial Impedance	Max:25mΩ
4.13	Weight	Approx:83±3g
4.14	Operating temperature	Charging: 0~45°C Discharging:-20~60°C
4.15	Storage temperature	-5~35°C
4.16	Storage Humidity	≤75% RH
4.17	Appearance	Without scratch, distortion, contamination and leakage
4.18	Standard environmental condition	Temperature :23±5°C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
