Lithium Ion Cylindrical Battery 18650-2500mAh, 15c Discharge, Flat Head, E-Cigarette Battery, Power Bank, Audio Battery, Lithium 18650 Battery, Li Ion Battery

Get Latest Price

Payment Type:: T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

Our products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, walkmans, wireless microphones, medical equipment and other electronic products.

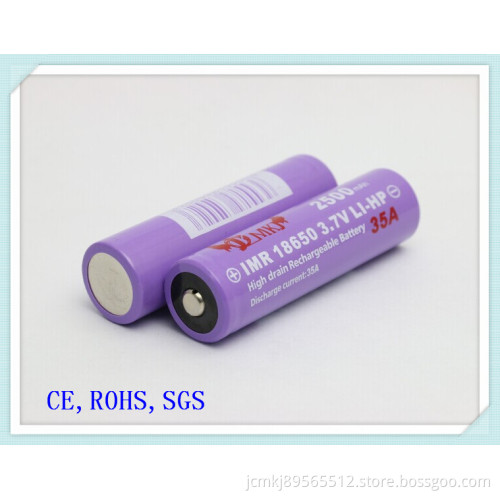

JCMKJ Lithium 18650-2500mAh battery 3.7V Flat head,15C discharge

Lithium Ion Cylindrical Battery 18650-2500mAh, 15c Discharge, Flat Head, E-Cigarette Battery, Power Bank, Audio Battery, Lithium 18650 Battery, Li Ion Battery

The discharge curve of different ratio
Voltage
(V)

Lithium Ion Cylindrical Battery 18650-2500mAh, 15c Discharge, Flat Head, E-Cigarette Battery, Power Bank, Audio Battery, Lithium 18650 Battery, Li Ion Battery

Discharge time (min)

Specifications:
1. Capacity:
Nominal: 2, 530mAh
Min.: 2, 500mAh

2. Dimensions:
Diameter: 18+/-0.2mm
Height: 65+/-0.2mm

3. Features:
1) Lithium ion 18650 cylindrical rechargeable battery
2) 3.7V 2, 500mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time.

Lithium Ion Cylindrical Battery 18650-2500mAh, 15c Discharge, Flat Head, E-Cigarette Battery, Power Bank, Audio Battery, Lithium 18650 Battery, Li Ion Battery

NO.	Item	Specifications
1	Typical Capacity	2530mAh @ 0.2C Discharge
1	Minimum capacity	2500mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	2500mA(1.0C 5rate)
10	Quick Discharge Current	2500mA(1.0C 5rate)
11	Max Discharge Current	7500mA (3.0C 5rate)
12	Initial Impedance	Max:65mΩ
13	Weight	Approx:47±1g
14	Operating temperature	Charging: 0~45 °C Discharging:-20~60°C
15	Storage temperature	-5~35 °C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 °C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
