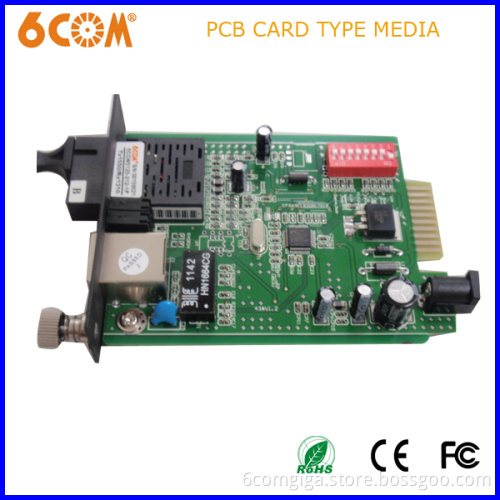

Mmf Sc Connector 20km Card Type Media Converter

Main features

1. In conformity to IEEE 802.3 10 Base-T standard.

In conformity to IEEE 802.3u 100 Base-TX/FX standard.

2. Max. 2M buffer memory built in chip.

3. Back pressure flow control for full duplex

IEEE802.3 X and half duplex.

4. Automatic identification of MDI/MDI-X cross line.

5. High-performance1.4Gbps memory bandwidth.

6. In conformity to safety code of FCC and 15 CLASS B and CE MARK.

Technical parameters:

1. Standard Protocol: IEEE802.3 10 Base-T standard

IEEE 802.3u 100Base-TX/FX standard

2. Connector: oneUTPRJ-45connector, oneSC/STconnector

3. Operation mode: full duplex mode or half duplex mode

4. Power supply parameter: outside: 5V DC 1A

built-in: 110-265V AC 48VDC

5. Environmental temperature: 0°C-60 °C

6. Relative humidity: 5%-90%

8. TP cable: Cat5 UTP cable

9. Transfer fiber:

 multi-mode: 50/125, 62.5/125 or 100/140μm

single mode: : 8.3/125, 8.7/125, 9/125 or 10/125μm

10. Dimensions:

 External power supply: 26mmx 70mm X 95mm

 Built-in power supply: 30mm X 110mm X 140mm
