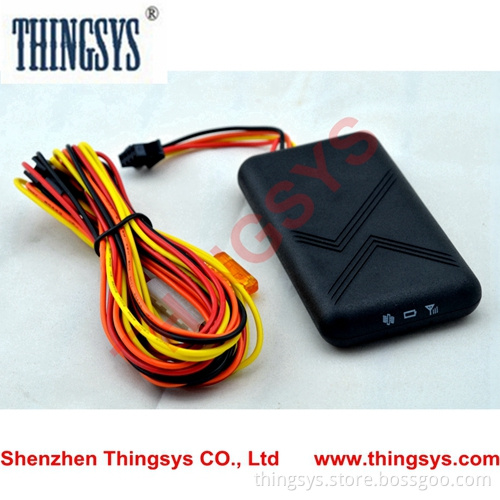

Storage Battery Car GPS Tracker (TS-V6H)
- Payment Type:
- L/C, T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | L/C, T/T, Paypal, Western Union |
Product Description
Product Description
For Auto, scooter and motorcycle
support 30-100V high voltage ,sutable for E-bike ,motorbike.
Please read the manual carefully before use the GPS Tracker so that you can install the device correctly and activate it quickly on the internet. The outlook and true color are subject to the actual product.
1.Accessories:
2. Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:30-100V DC
4).Working current:22mA (30vDC)
5).Working current:12mA (100vDC)
6).GPS locating time:Cold start38s(Open sky)
Warm start32s
Hot start2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20~+70
9).Working humidity:20%~80%RH
10).Measurement:87(L)×43(W)×14(H)mm
3.Out look
4.Device status indicators
4.1Connect DC 9-24V power supply and the red LED will light continuously.
4.2The green LED glistens when searching the GPS signals. When GPS works, the LED lights continuously.
4.3The intermediate blue LED (GSM signal state)
GSM signal is normal, blue LED light long bright. No GSM signal, the blue LED flashes.
GPS LED not fixed, flashes(0.2 sec/2 sec),Positioning long bright;
GSM LED no signal, flashes(0.2 sec/2 sec),Signal normal long bright;
Power LED: long bright;
All LEDS will turn off after 5 minutes. When there is a new call, the LEDs will relight and turn off 5 minutes later.
5.Installation
5.1 Preparation for the installation
5.1.1 Product Check. Open the packing box and check the device's model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
5.1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer's advice as reference.
5.1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder (as follows).
5.1.4 Put back the front cover and screw it up.
5.1.5 Connect the device to the 9-24Vpower supply.(the red LED constant glow)
5.1.6 Install the device in the hidden place of the car;
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
5.2 Installation
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield;
In the front instrument panel;
Under back windshield;
2) Avoid being placed with signal radiators like reverse sensor ;
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.6. The device connecting requirements.
6. Device wiring requirements
6.1 The device power supply is DC 9-24V. The red line is positive pole while the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make the plug of power supply to the device.
7.The Device Working
7.1 Power on: the device will be power on when connecting to the current. Then the three LED indicators will light continuously. The device will upload the data to the online platform (the default interval of uploading data is 10seconds). When the car is in static state for a long time, the device will be in energy saving mode and it will be more smart and precise.
7.2Power off:Pull off the power plug then power off the device.
support 30-100V high voltage ,sutable for E-bike ,motorbike.
Please read the manual carefully before use the GPS Tracker so that you can install the device correctly and activate it quickly on the internet. The outlook and true color are subject to the actual product.
1.Accessories:
2. Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:30-100V DC
4).Working current:22mA (30vDC)
5).Working current:12mA (100vDC)
6).GPS locating time:Cold start38s(Open sky)
Warm start32s
Hot start2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20~+70
9).Working humidity:20%~80%RH
10).Measurement:87(L)×43(W)×14(H)mm
3.Out look
4.Device status indicators
4.1Connect DC 9-24V power supply and the red LED will light continuously.
4.2The green LED glistens when searching the GPS signals. When GPS works, the LED lights continuously.
4.3The intermediate blue LED (GSM signal state)
GSM signal is normal, blue LED light long bright. No GSM signal, the blue LED flashes.
GPS LED not fixed, flashes(0.2 sec/2 sec),Positioning long bright;
GSM LED no signal, flashes(0.2 sec/2 sec),Signal normal long bright;
Power LED: long bright;
All LEDS will turn off after 5 minutes. When there is a new call, the LEDs will relight and turn off 5 minutes later.
5.Installation
5.1 Preparation for the installation
5.1.1 Product Check. Open the packing box and check the device's model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
5.1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer's advice as reference.
5.1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder (as follows).
5.1.4 Put back the front cover and screw it up.
5.1.5 Connect the device to the 9-24Vpower supply.(the red LED constant glow)
5.1.6 Install the device in the hidden place of the car;
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
5.2 Installation
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield;
In the front instrument panel;
Under back windshield;
2) Avoid being placed with signal radiators like reverse sensor ;
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.6. The device connecting requirements.
6. Device wiring requirements
6.1 The device power supply is DC 9-24V. The red line is positive pole while the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make the plug of power supply to the device.
7.The Device Working
7.1 Power on: the device will be power on when connecting to the current. Then the three LED indicators will light continuously. The device will upload the data to the online platform (the default interval of uploading data is 10seconds). When the car is in static state for a long time, the device will be in energy saving mode and it will be more smart and precise.
7.2Power off:Pull off the power plug then power off the device.
