4 Channel D1 3G Mobile DVR, Works with 1PCS 128GB SD Card, Bd-301W

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

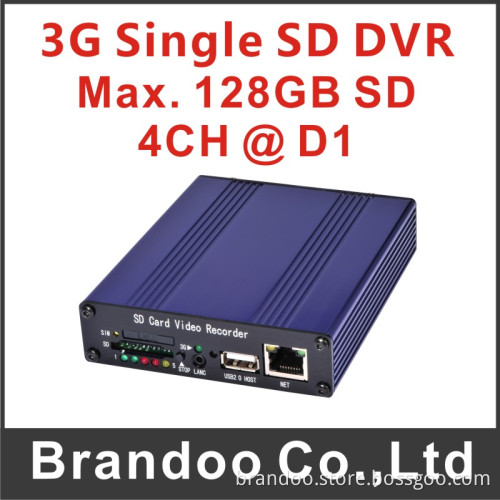

This is a mini size 3G mobile DVR, The DVR works with WCDMA network, support live monitoring in office, we offer free CMS client sotware. and it support 1pcs max. 128GB sd memory, or external 500GB HDD. 4 channel D1 resolution brings better view when vehicle running. It support extra GPS and 3G/WIFI function.

Features
>3G network based on WCDMA
>Free CMS client and Server software
>H.264 compression at D1 resolution
>Max. 128GB sd memory or external 500GB HDD.
>Standard AVI file format and FAT32 file system, compatible with third party player.
>Reliable power management, wide voltage: +8VDC~+40VDC.
>3G/WIFI/GPS function optional
>Compact size & lightweight for easy installation.

DVR details

Easy installation and set up for 3G function

Professional player with GPS MAP
4 Channel D1 3G Mobile DVR, Works with 1PCS 128GB SD Card, Bd-301W

Item	Parameter	Description
System	Language	Chinse Simplified/Chinese Traditional/English/Japanese
	Interface	Graphical User Interface
	Security	Administor and user password protected
Video	Video Input	1/2/4 channel video input, 1.0V,p-p,75Ω,BNC
	Video Output	1 channel vidoe output, 1.0V,p-p,75Ω,BNC
	Display	1/2/4 channel display
	Video Standard	PAL (25fps) NTSC (30fps)
Audio	Audio Input	1/2/4 channel audio input, 20KΩ,RCA
	Audio Output	1 channel audio output, 500Ω,RCA
	Output level	1V ~2V, p-p
	Recording mode	Audio and video synchonize
	Compression	AAC
Storage	Video Compression	H.264 High Profile
	Resolution	D1 at 100fps
	Video bitrate	D1: 200Kbps ~ 2Mbps
	Audio bitrate	8KB/s
	Storage	SD card,USB2.0 port(For flash disk or hard drive)
Format	AVI
Sensor	Sensors	1 speed sensor, 1 ignition sensor, 3 common use senseors
Communication	COM	Two RS232 connector and one RS485 connector
	Network	RJ45,10M/100M Lan port
GPS	supported
Software	Player
3 rd party player	VLC media player,Storm player,WINAMP
Firmware update	Via SD card orUSB disk
Power	Power input		DC:+8V ~ +32V
	Power output		+12V@1.5A;+5V@1A
	Power consumption		Less than 5W ;less than 0.1W in standby mode
Working temperature	-10 ~ +60
Size	9.2CM ( Width ) ×2.0CM ( Height ) ×11.5CM ( Depth )
